ST 316 UNSYMMETRICAL CANTILEVER

Enquiry

Video

Download

The apparatus is used for studying a cantilever deflection and determining shear center when the plane of loading does not co-inside with the axis of symmetry of the cross section. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

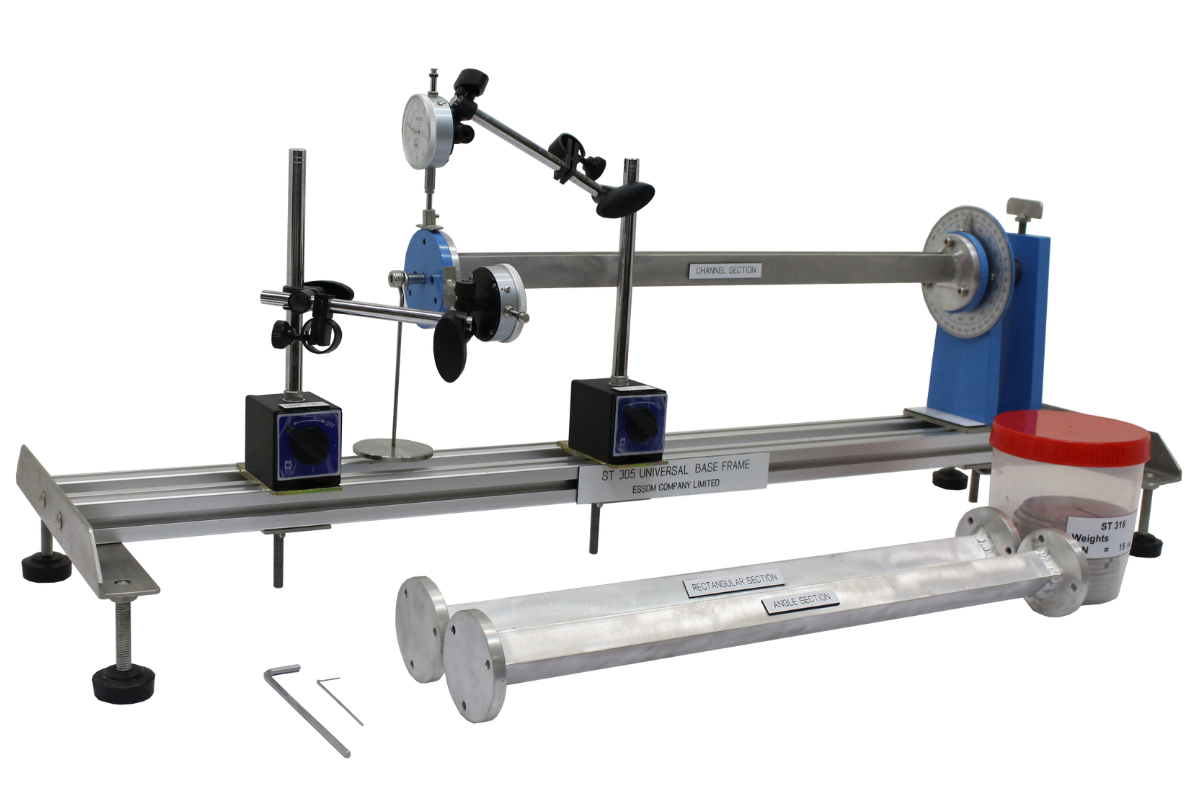

The cantilever under test is mounted horizontally on a support column at one end. The mounted end can be rotated to indicate its position relative to a fixed angular scale. Load is applied through a weight hanger and weights at the free end. A circular disc is attached to the free end and vertical and horizontal displacements may be measured by two dial indicators. The pin where weight hanger is hung can be moved laterally on the circular disc across and outside the section of the cantilever to determine shear center.

Instruction manual is also included.

  • Vertical and horizontal displacements vs angular positions for an applied load.

  • Relationship between the vertical and horizontal deflections and the principal

  • Determination of area moment of inertia around neutral axis.

  • Cantilever section made from extruded aluminum 500 mm long.
-  Angle section:  1
-  Channel section:  1
-  Rectangular section:  1
  • Load hanger
:  1
  • Weights
:  1 lot
  • ST131 Dial Indicators
:  2







  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 60 x 15 cm
  • Net Weight:  Approx. 15 kg
  • ST316S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST316-005
Aluminum tube cantilever for combined bending and torsion test using eccentric load

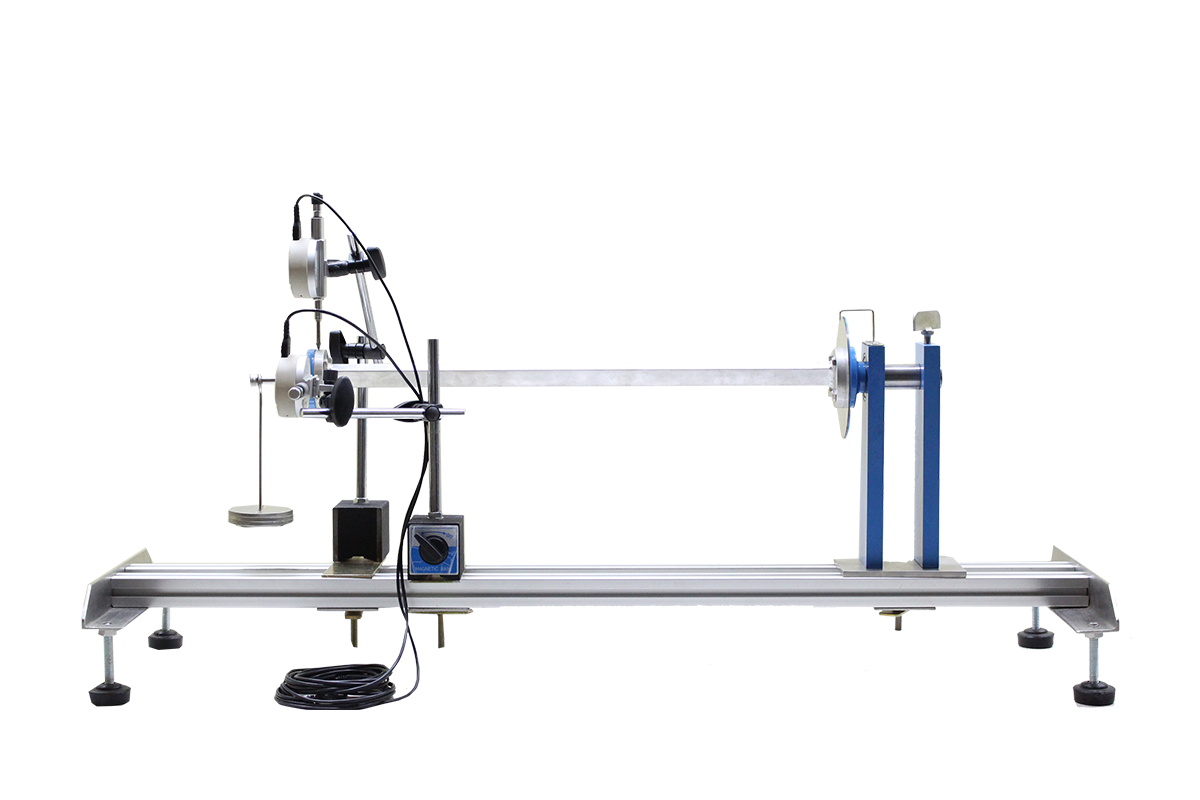

  • ST316-055
Computer Assist (computer not included)
                                     This includes ST316S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST316S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
