ST 351 SIMPLE SUSPENSION BRIDGE

Enquiry

Video

Download

This equipment allows measurement of cable tension resulting from uniform and non-uniform distributed and point loads on the rigid deck. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

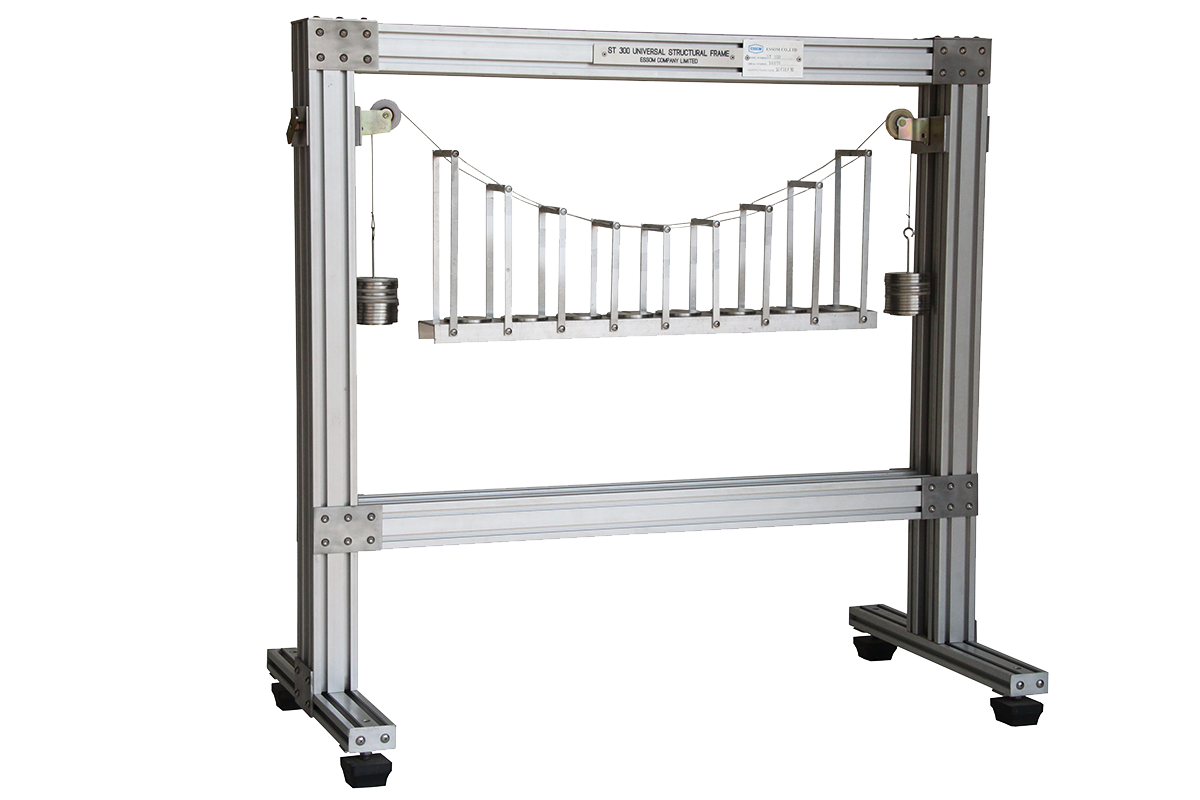

A light metal alloy with stiffening ribs is carried by two rows of nine equally spaced hangers, one on each side. Each row of hangers has a flexible steel cable support whose length simulates a parabolic curve. Each end of the cable passes over a pulley to a load hanger. Special loads are provided to simulate uniform distribution load and movable point load.

Instruction manual is also included.

  • Demonstration of the characteristics of a simple suspension bridge

  • Examination of the relationship between applied loads and the suspension cable tension

  • Observation of the stability of the structure

  • Comparison of behavior to simplified cable theory

  • Bridge
:  Aluminum 660 long x 75 mm wide
  • Arch
:  600 mm span, 150 mm and 100 mm dip
  • Pulley sets
:  2
  • Load hangers
:  2
  • Point load and weights
:  1 lot.








  • Net (unassembled) Shipping Dimensions WxLxH: 35 x 75 x 30 cm
  • Net Weight:  Approx. 7 kg
  • ST351S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST351-055
Computer Assist (computer not included)
                                    This includes ST351S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST351S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
