TH 240 MULTI HEAT EXCHANGER

Enquiry

Video

Download

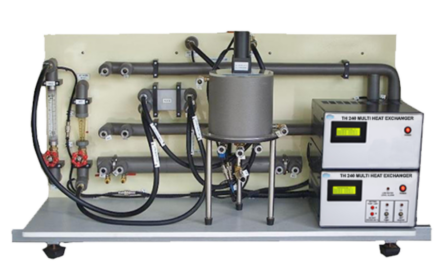

The apparatus is used for studying of three types of heat exchangers namely-concentric tube, shell and tube, and plate-under parallel or counter flow conditions.

The unit consists of the three heat exchangers and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Selection of the heat exchanger is simply by opening a valve and changing from parallel to counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Comparison of heat transfer for concentric tube, shell and tube, and plate heat exchanger.



  • Demonstration of heat transfer under parallel or counter flow.



  • Demonstration of batch type heat transfer for jacketed vessel (optional).



  • Determination heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:

- Concentric tube: Insulated stainless steel outer with inner tubes
 : Total heat transfer area 600 cm2 (approx.)
- Shell and tube: Insulated stainless steel shell with 7 stainless steel inner tubes
 : Total heat transfer area 600 cm2 (approx.)
- Plate: Stainless steel, multiple plates
 : Total heat transfer area 1200 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
 for hot and cold water mid-section of concentric tube
  • Temperature control unit to limit temperature of hot water to not more than 80°C
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request

Net (unpacked) shipping dimensions WxLxH  : 65 x 150 x 65 cm

Net weight  : Approx. 75 kg

  • TH240S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH240-231
Stainless steel jacketed vessel with coil and stirrer
- Vessel content: 2.5 L
- heat transfer area: 600 cm2 (approx.) for Jacket
 : 350 cm2 (approx.) for Coil
- Stirrer: 0- 500 rpm
- Additionaltemperature sensors for vessel content and water outlet
  • TH240-050
Computer Interface (computer not included)
 This includes TH240S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH240-060
Computer Control (computer not included)
 This includes TH 240-050 with the additional accessories for control function and additional
 software function for equipment controls by computer
  • TH240S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
