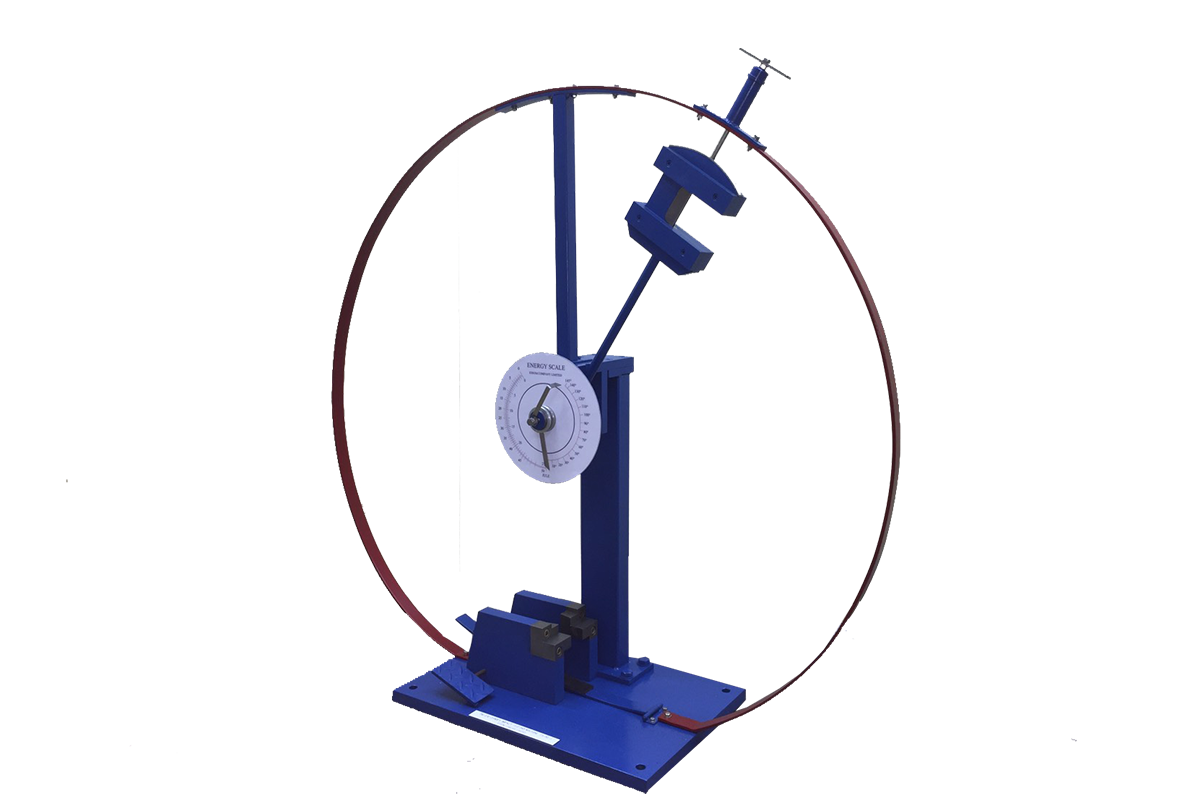

TM 232 CHARPY IMPACT TESTING MACHINE, 25/50 J

Enquiry

Download

The impact testing machine is designed for determination of resistance to fracture of materials by charpy test based on DIN51222.

The machine is constructed with a heavy base and support columns.  The pendulum is hung on ball bearings. The impact energy can be adjustable for different capacity. A pendulum brake and safety guard are also provided.

Instruction manual is also included.

  • Determination of notched bar impact work.

  • Determination of notched bar impact strength.

  • Influence of notch form on impact work.

  • Influence of materials heat treatment, and temperature on impact work (optional).

  • Capacity
:     25 and 50 Joules
  • Scale graduation
:     0.25 and 0.5 Joule with maximum pointer.
  • Lift angle of hammer
:     145o
  • Striking velocity
:     3.825 m/s





  • Net (unpacked) Shipping Dimensions WxLxH: 40 x 65 x 120 cm
  • Net Weight:  Approx. 171 kg
  • TM232-001
Furnace for material heat treatment experiment
  • TM232-005
Specimens (pack of 5).
  • TM232-050
Computer Interface (computer not included)
                                                           This includes TM232S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TM232S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
