CF 100 LIQUID SEDIMENTATION APPARATUS

Enquiry

Video

Download

The apparatus is designed to study the settling characteristics and particle sizes of suspended solid.

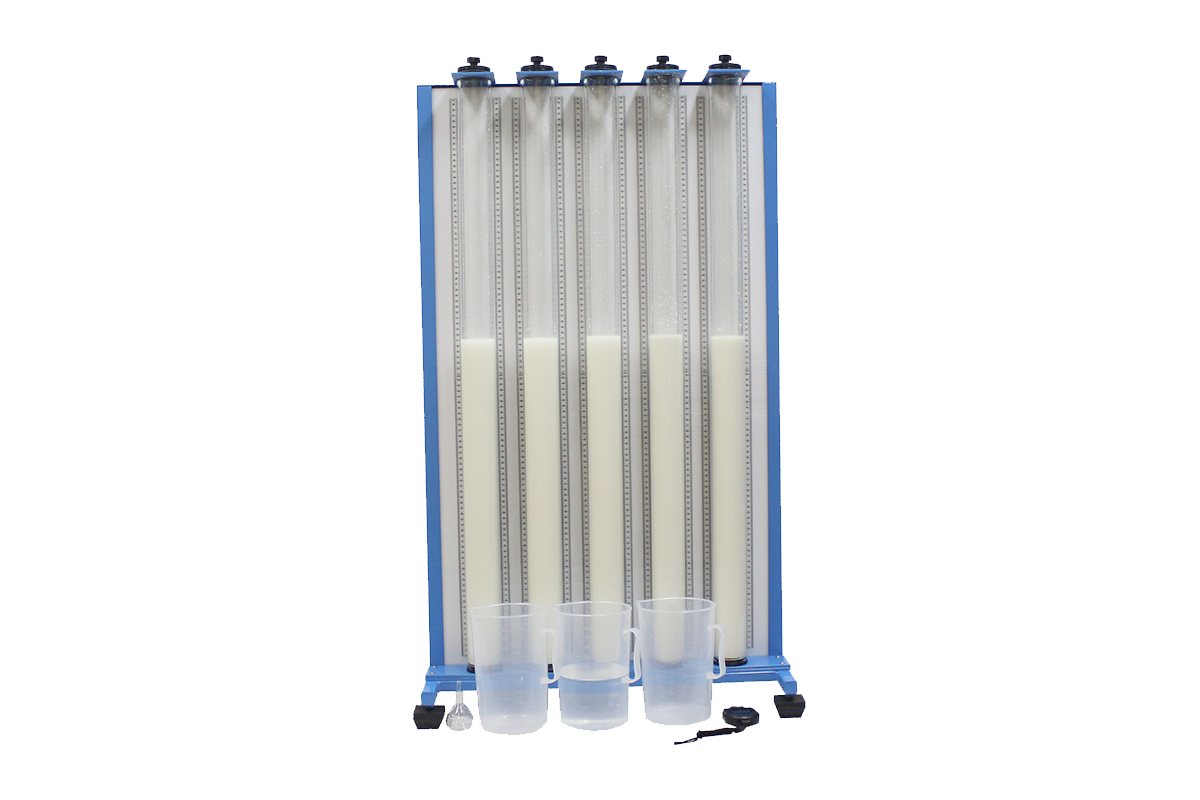

Five transparent glass sediment tubes are mounted vertically on a rigid frame. The rear panel is translucent with LED backlight. Scales are provided on the tubes. The tubes can be removed for washing, filling or mixing of solid particles. Sedimentation rate is observed using a stopwatch.

Instruction manual is also included.

  • Settling rate curve.

  • Effect of particle size distribution.

  • Effect of suspension height on sedimentation rates.

  • Effect of concentration on sedimentation rate.

  • Effect of flocculent.

  • Glass tubes
: 5
  • Stop watch
: 1
  • Beakers
: 3
  •  Lamps
: 4
  • Specific gravity bottle
: 1
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH:  40x 70 x 115 cm
  • Net Weight:  Approx. 36 kg
  • SP261
Triple beam balance.
  • HF112S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
