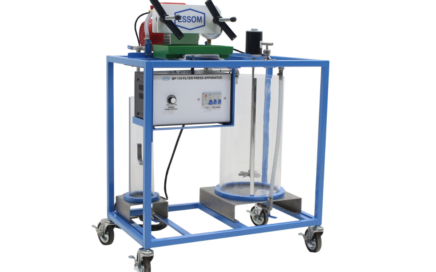

CF 110 FILTER PRESS APPARATUS

Enquiry

Download

Filter press is used for clarifying intermediate products. Such as suspension water. A suspension water is prepared in a feed tank. A stirrer ensures that the solid remains suspended and does not settle. The pump delivers the suspension water into the individual separating chambers of the filter press. The filtrate passes through the filter cloth and flows into the filtrate tank.

The flow rate through the filter press is controlled by a pump. The pressure occurring during filtration is indicated on a pressure gauge.

The unit is painted steel frame with adjustable footings.

  • Learning the fundamental principle and method of operation of a plate and frame filter press

  • Production of a suspension

  • Fundamentals of cake filtration (Darcy’s equation)

  • Variation in time of filtrate quantity and solid concentration in filtrate

  • Feed tank
:  Clear acrylic tank with stirrer.
  • Filter press
:  1 set.
  • Feed pump
:  1 ea.
  • Filtrate tank
:  Clear acrylic tank with drain point.
  • Measuring instruments
- Pressure :  Pressure gauge at filter inlet.
  • Power supply
:  220V 1Ph 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 120 x 120 cm.
  • Net Weight:  Approx. 90 kg
  • CF110-001
Filter paper
  • CF110-002
Portable turbidity meter
  • CF110-003
Digital balance.
  • CF110-004
Watch glass
  • CF110-005
Lockable wheel instead of screw adjustable footing
  • Larger size is available on request.

  • Other optional equipment, please contact manufacturer ([email protected])

  • CF110S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
