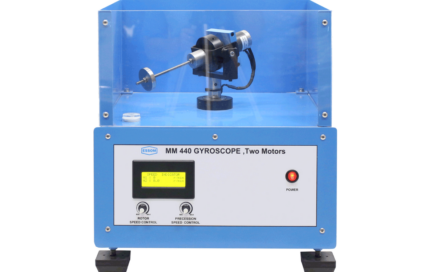

MM 440 GYROSCOPE, Two Motors

Enquiry

Video

Download

The apparatus is used for studying relationship between gyroscopic torque, rotor speed and rate of precession.

The equipment consists of a steel rotor with a small motor, counter weight, precession motor, and instruments for measurement of speeds and counter weight distance.  The rotor is mounted horizontally on a frame with two bearing supports. The frame has a horizontal screw for installation of counter weight to provide a torque. The frame rests on a vertical shaft driven by the precession motor. A guard with transparent front is provided for safety.

Instruction manual is also included.

  • Gyroscope torque vs processional speed.

  • Rotor speed vs gyroscope torque.

  • Determination of systems moment of inertia and nutation study.

  • Rotor motor
 : DC motor
  • Rotor speed
 : Up to 4000 rpm
  • Precession motor
 : DC geared motor
  • Precession speed
 : Up to 60 rpm
  • Speeds
 : Digital display for rotor and precession.
  • Balancing weights
 : 1 lot
  • Steel ruler
 : 1 ea.
  • Power supply
 : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unpacked) Shipping Dimensions WxLxH: 45 x 45 x 40cm
  • Net Weight:  Approx. 30 kg
