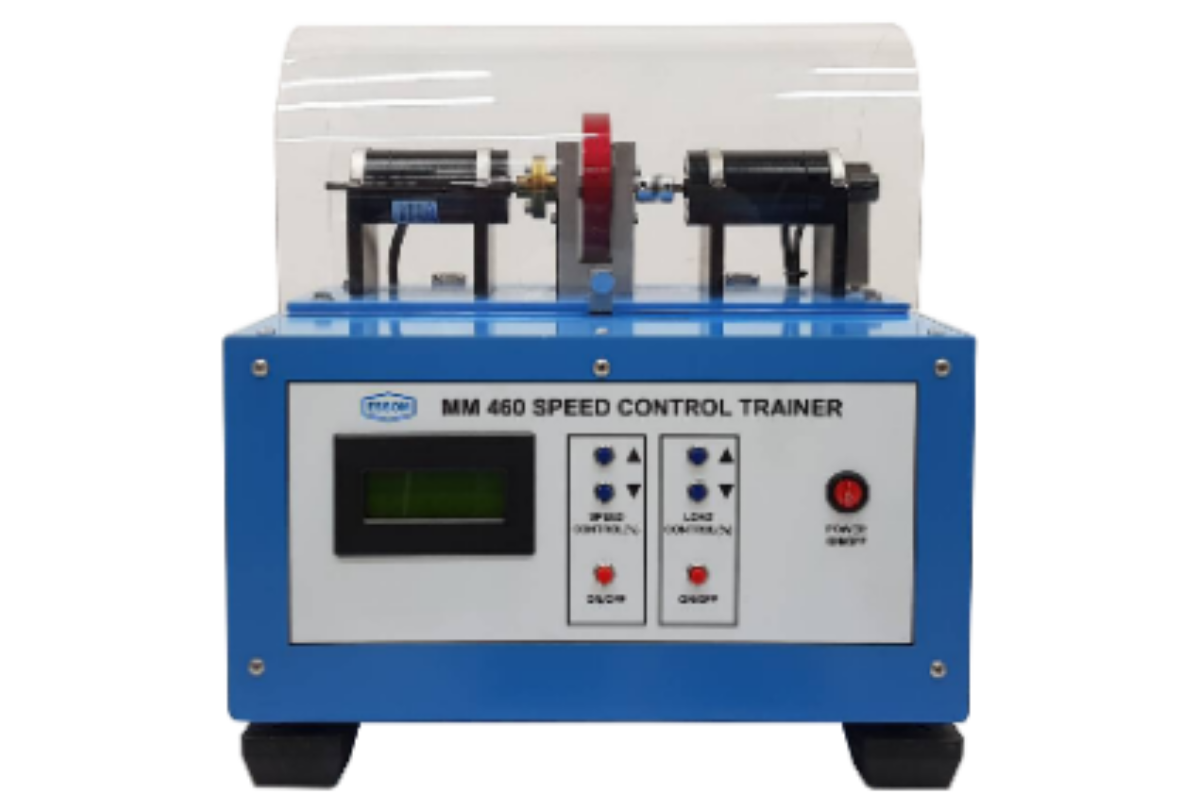

MM 460 SPEED CONTROL TRAINER

Enquiry

Video

Download

This trainer is designed for studying and understanding the fundamental of motor speed control in various system via modern technology. A motor is connected to one end of the fly wheel and the other end is connected to the generator. An electrical load is also connected to the generator as a load of the system. The motor speed and the generator load can be set from panel and/or computer. A transparent cover with safety switch is provided.

Instruction manual is also included.

  • Open Loop Control
  • Manual Close Loop Control: Manual Control Load
  • Automatic Close Loop Control: PID.
  • Automatic Close Loop Control: Trial and error tuning
  • Automatic Close Loop Control:  Ziegler-Nichols method
  • Automatic Close Loop Control:  Load
  • Motor

     - Voltage: 24 Vdc
     - Maximum speed: approx. 3,500 rpm.
  • Flywheel

     - Size: Diameter 100 mm
     - Weight: 350 g
     - Shaft: Stainless steel
  • Generator

     - Voltage: 24 Vdc
     - Maximum speed: approx. 3,500 rpm.
  • Measuring instrument with digital display
: Speed of rotor
 : Voltage and current for motor and generator.
  •  Computer Interface unit with software for data display, analysis, and control by computer (separately supplied)

  • Power supply: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH:  40 x 44 x 43 cm
  • Net Weight:  Approx. 26 kg
