MM 113 JIB CRANE APPARATUS

Enquiry

Video

Download

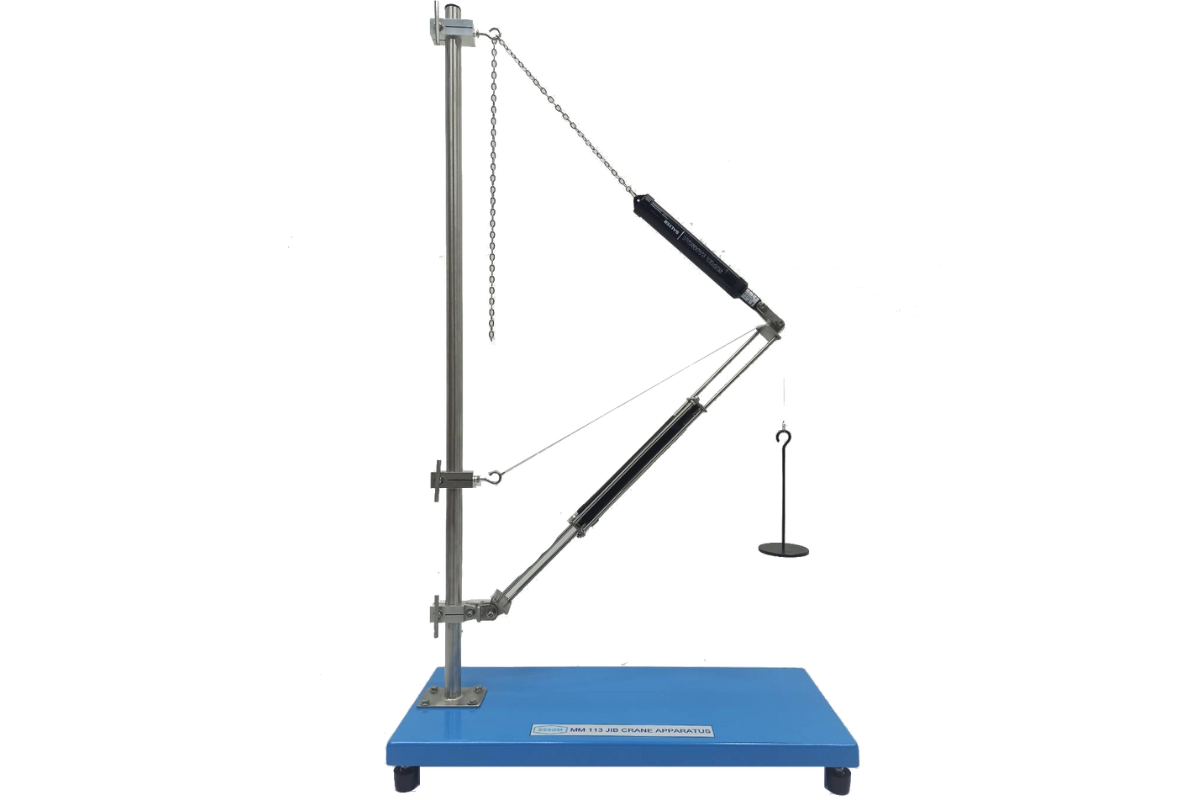

The equipment is designed to study forces in jib crane elements. Jib crane has two elements which are attached to a vertical rod. The lower element is called jib and the upper element is termed as tie. Load is applied at the junction of jib and tie to produce tension and compression in tie and jib respectively.

Instruction manual is also included.

  • Calculation of the forces in jib crane.
  • Comparison of experimental and theoretical results
  • Vertical columns
: 1
  • Compression member
: 1
  • Tension members
: 1
  • Load hanger
: 1
  • Weights
: 1 lots.
  • Net (unassembled) Shipping Dimensions WxLxH:  ... x ... x ... cm
  • Net Weight:  Approx. ... kg
  • Spring balance and weight in Newtons instead of grams.
