MM 573 ROTARY – TRANSLATION MOTION SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

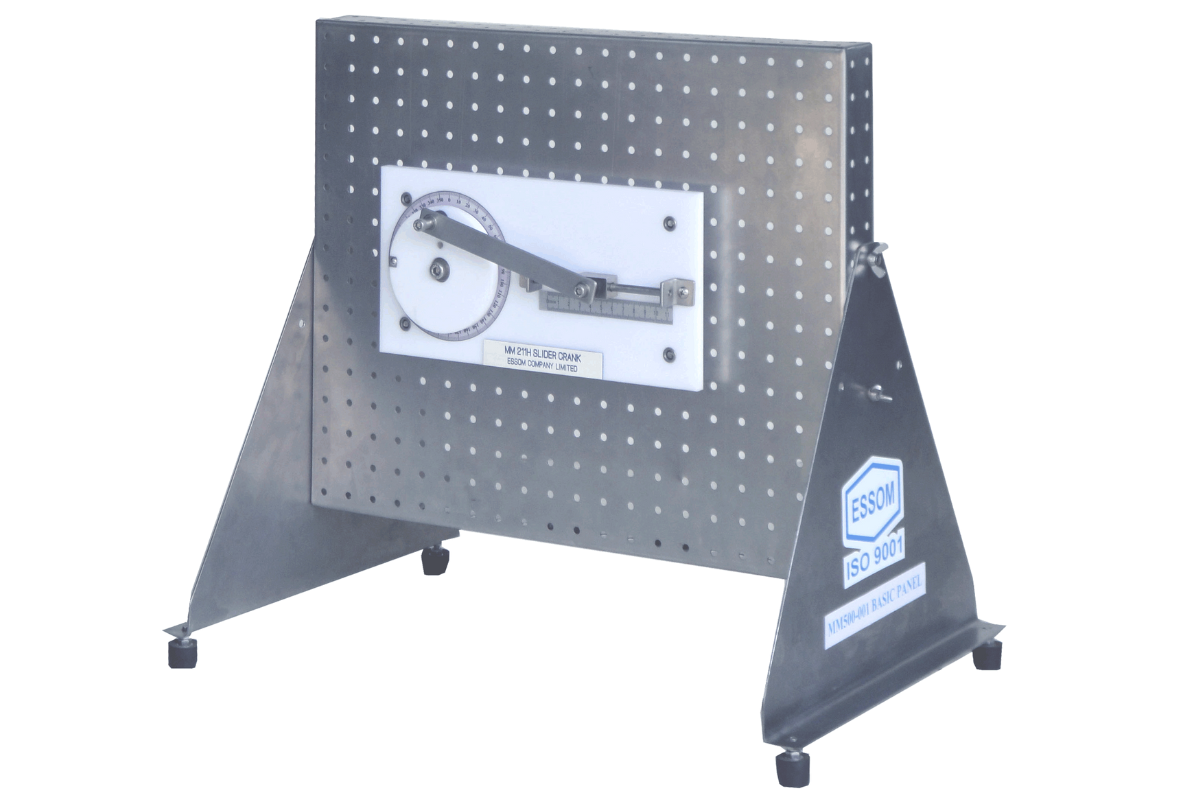

Slider crank, slotted link, and quick return mechanism and step pulley are used for studying relation of rotary motion and translation.

Instruction manual is also included.

  • Relation of rotary motion and translation in slider crank, slotted link and quick return mechanism and step pulley.
  • Slider crank
  • Slotted link
  • Quick return mechanism
  • Step pulley
  • Cord
  • Weight hanger
  • Plastic box
  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM573S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
