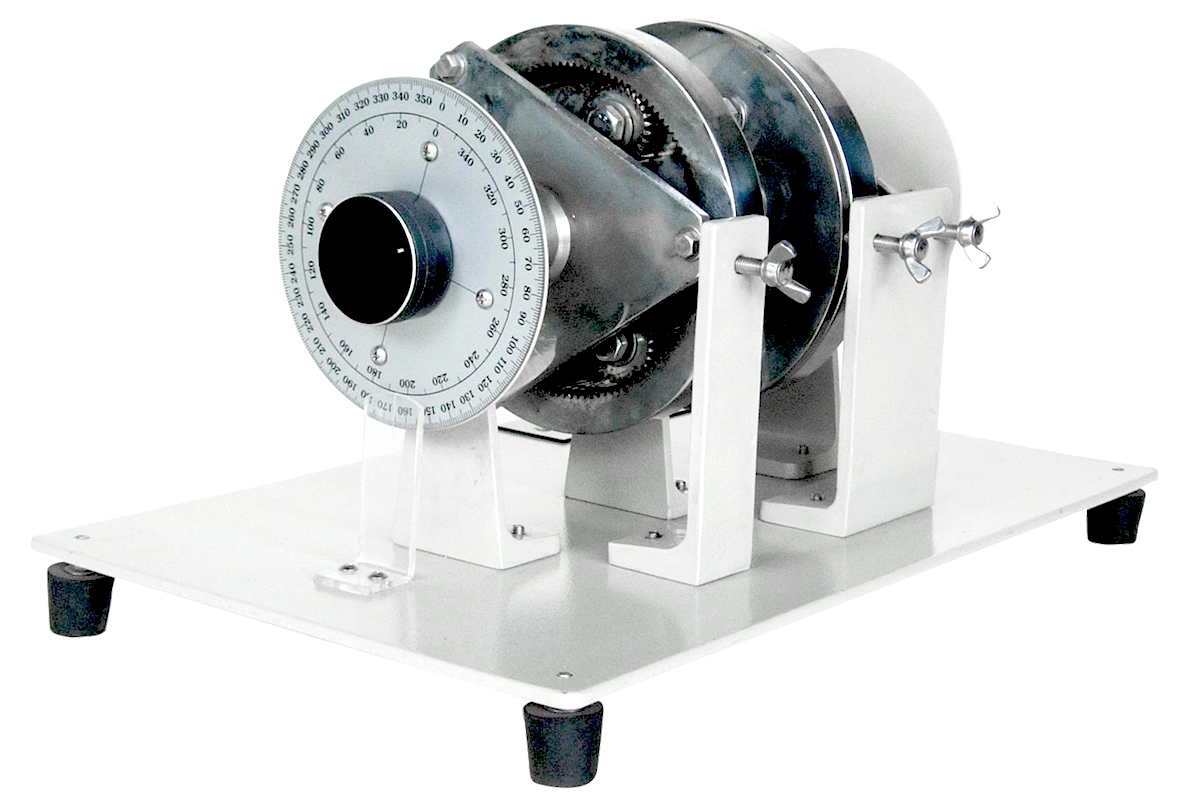

MM 222 DOUBLE EPICYCLIC GEAR TRAIN
Enquiry
Video
Download
This mechanism demonstrates relative angular motion in degrees between three shafts with common axis using two epicyclic trains to produce two forward speeds or a forward and a reverse.
- Net (unassembled) Shipping Dimensions WxLxH: 25 x 42 x 25 cm
- Net Weight: Approx. 11 kg
