MM 325 WHIRLING OF SHAFTS APPARATUS

Enquiry

Video

Download

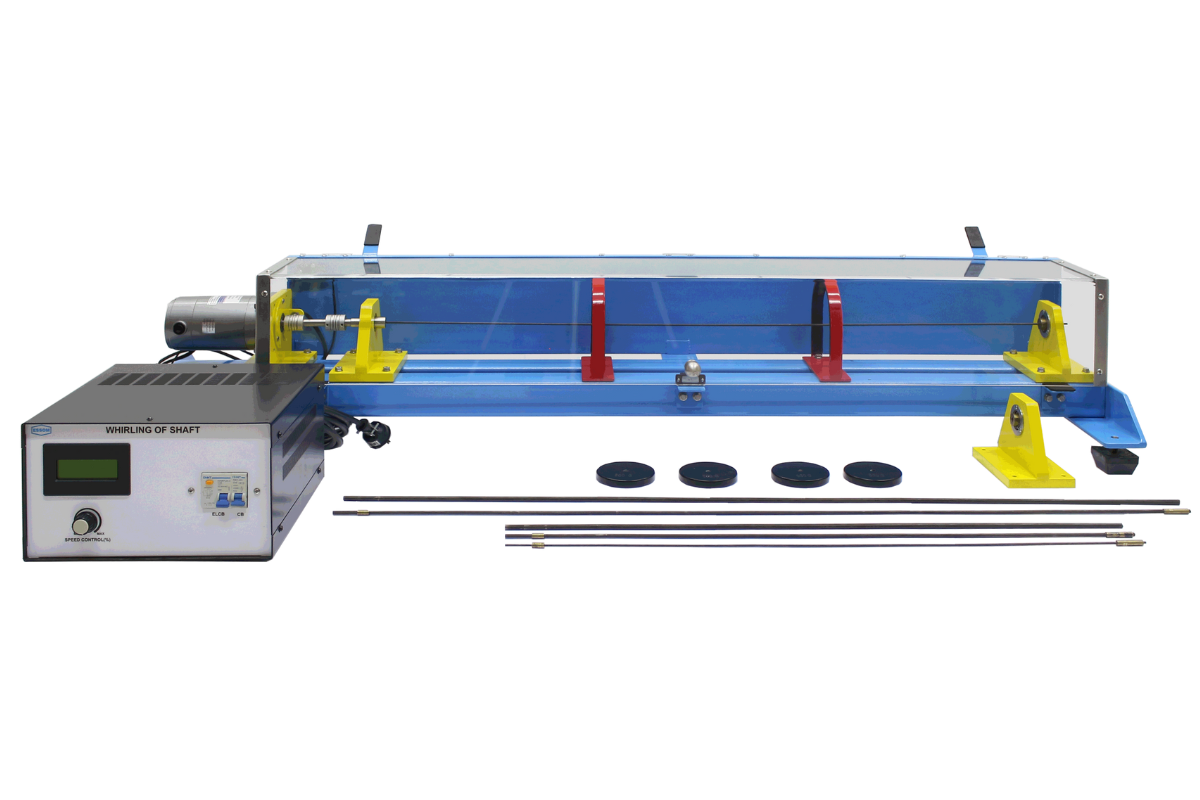

For studying the critical rotational speeds on simply loaded of various shafts. It is a self-contained bench mounting. Apparatus includes a DC motor drives the shaft via a flexible coupling. Motor speed can be continuously variable and displayed on a digital readout by a revolution counter. A transparent protective cover and safety rings ensure safe operation. The unit includes the tools need for easy experiment setup.

Instruction manual is also included.

  • Demonstration of basic whirling

  • The effect of end conditions

  • Variation of shaft diameter and supported length

  • Loaded shaft (with mass disc)

  • Eccentric loading

  • Shaft
: Mild steel, different diameter and length.
  • Mass
: 1 lot.
  • Measuring tape
: 1
  • Fixed bearing support
: 1
  • Free bearing support
: 1
  • Motor
  • Speed control
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 65 x 154 x 34 cm
  • Net Weight:  Approx. 52 kg
  • MM325-001
: Stroboscope (separately supplied)
  • MM325S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
