MM 541 INCLINED PLANE SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

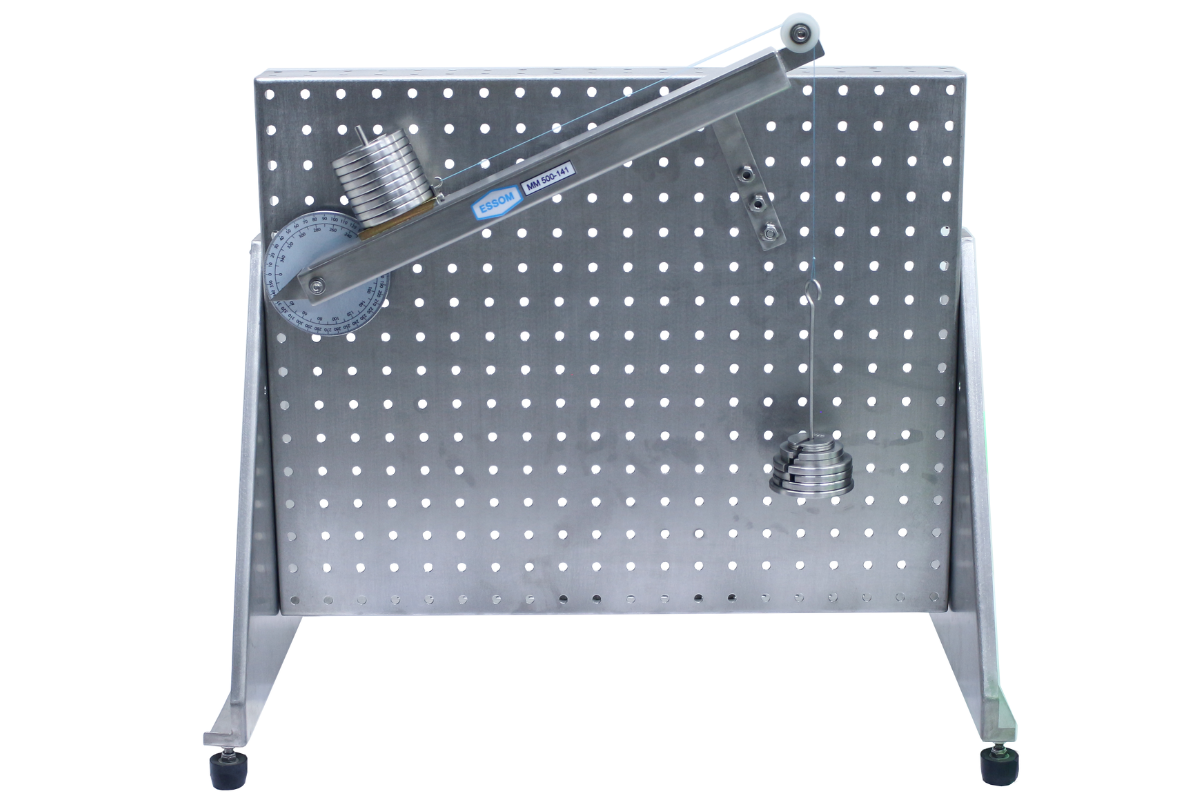

The set uses an adjustable slope inclined plane whose surface finish can be changed. Moving on the inclined plane is a sled, a roller or a rolling car with load. A pulley with load hangers and weights are provided for loading and friction measurement.

Instruction manual is also included.

  • Forces on an inclined plane.
  • Rolling and sliding friction on different surfaces.
  • Kinetic and static friction.
  • Effects of inclined angle.
  • Inclined plane

  • Plastic and steel surfaces

  • Sliding block

  • Rolling car

  • Roller

  • Cord

  • Load hanger

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM541S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
