MM 514 SHEAR FORCE SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

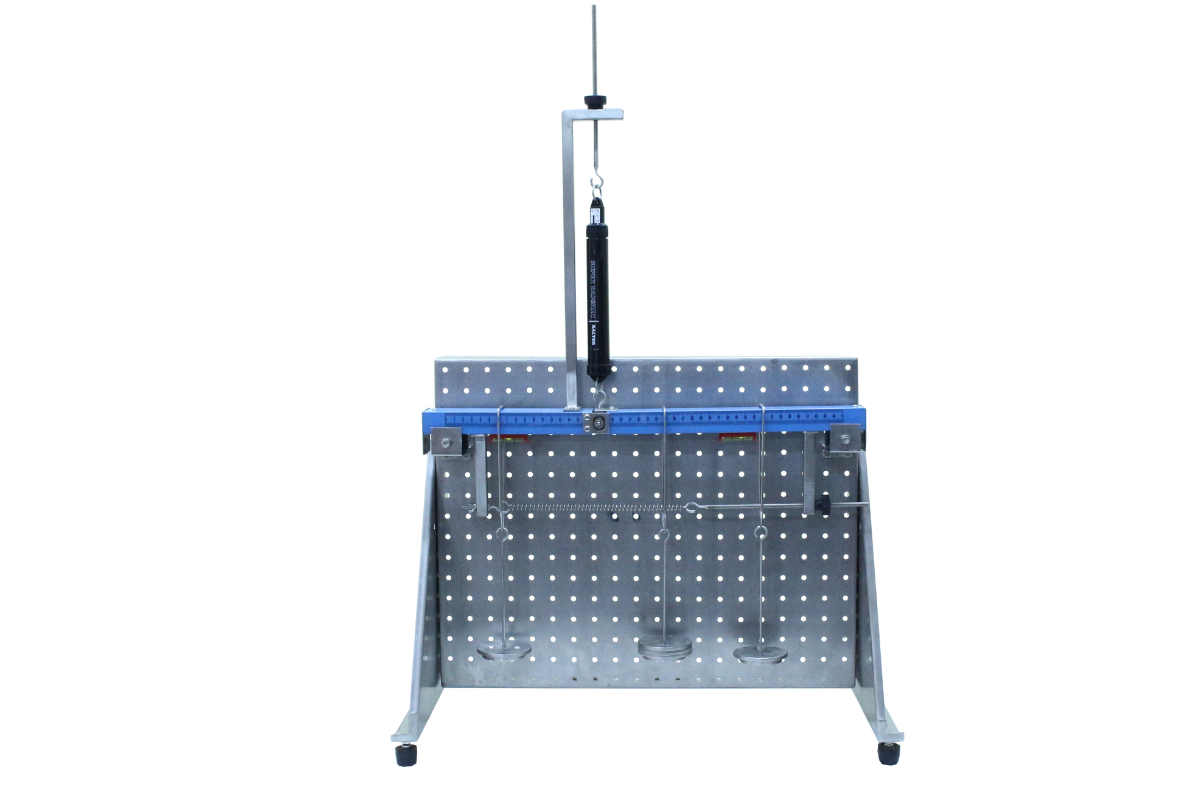

The beam has two parts with one part having ball bearings travel on vertical surface of the other part. An overhung spring balance measures the shear force and an underhung spring resists bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Shear force of a beam under loads.
  • Beam for shear force test 400 mm long

  • Beam supports

  • Hanger sliders

  • Spring balance

  • Load hangers

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM514S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
