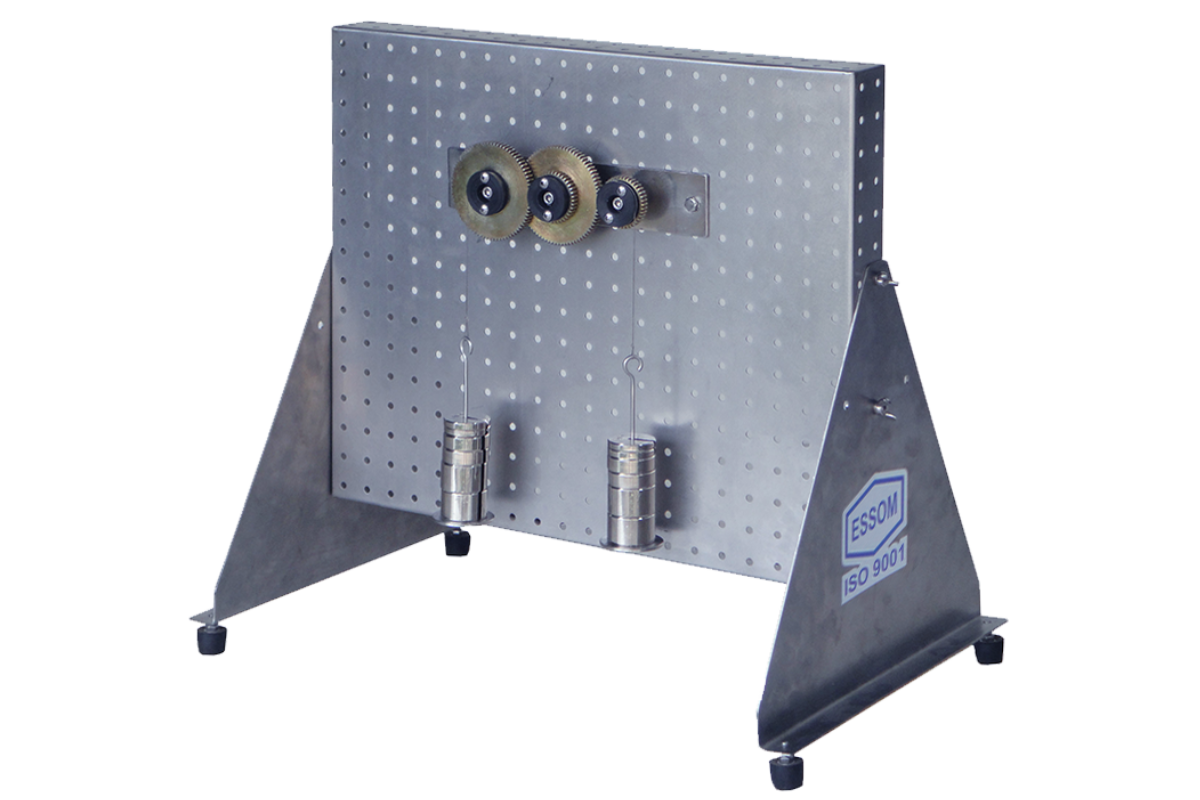

MM MM 553 GEAR TRAIN SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

The set includes spur gear set, worm and wheel, bevel gear set with load hangers and weights for determination of gear ratio, mechanical advantage and efficiency of the gear system.

Instruction manual is also included.

  • Characteristics of spur gears for single and compound trains.
  • Characteristics of bevel gear.
  • Characteristics of worm and wheel.
  • Spur gears of different number of teeth

  • Worm and wheel set

  • Bevel gear set

  • Cords

  • Load hangers

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • Other optional equipment, please contact manufacturer (essom@essom.com)
  • MM553S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
