MM 240 SIMPLE GEAR SYSTEM

Enquiry

Video

Download

The system is for studying the acceleration of a gear system under different gear ratios.

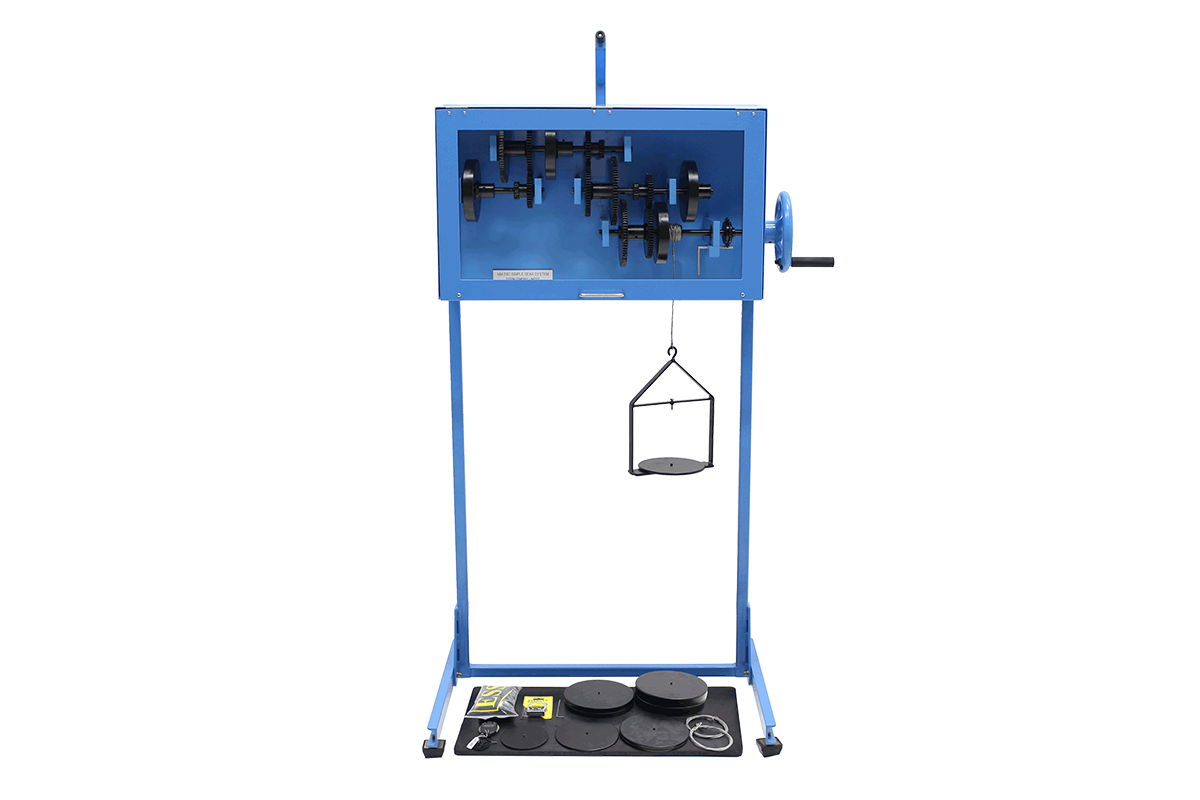

The system consists four parallel shafts with fix and sliding gear and supported by ball bearings on a base frame. Shafts 1, 2 and 3 have two fixed gears. Shafts 2, 3 and 4 have two sliding gears.  Each pair of adjacent shafts has two transmission ratios, providing 8 different gear ratios between the first and the last shaft. Inertia mass with torque drum is attached to each shaft. A cord wound around a drum and the weight hanger provides a means of applying a torque. The gear system is attached to a wall supported on two legs for weight hanger travel. By timing the fall of the weight hanger, the acceleration of the system can be calculated. A sprocket and lock pin, and a winding handle are provided for raising the weights. All gears are enclosed in a casing with a transparent cover for safety.

Instruction manual is also included.

  • Inertia of a mass and of a geared system.
  • Efficiency of a geared system.
  • Shafts
: 4 ea.
  • Inertia masses
: 4 ea.
  • Gear
: Spur gear.
  • Maximum gear ratio
: 64:1
  • Cord with measuring tape
: 1 set
  • Stop watch
: 1 ea.
  • Weight hanger
: 1 ea.
  • Weights
: 1 lot
  • Accessories
: Rubber pad
  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 30 x 110 cm
  • Net Weight:  Approx. 65 kg



  • MM240S
:Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MM240S

Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
