MM 533 TORSION SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

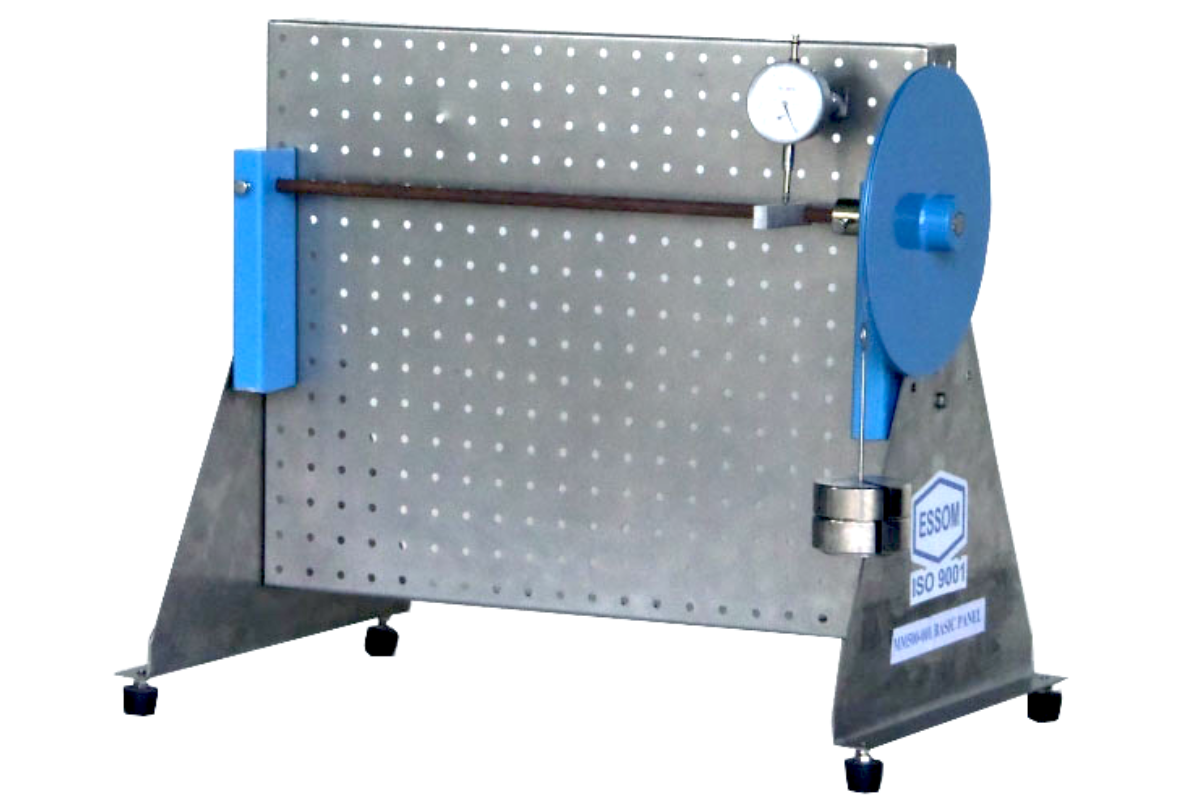

Circular bar is attached to two supports one fixed and the other rotating. Torsion load is applied on the rotating end via a pulley and angular displacement is measured a dial indicator on an arm.

Instruction manual is also included.

  • Angle of twist vs specimen length.
  • Angle of twist vs specimen material.
  • Angle of twist vs moment of inertia.
  • Specimens


     -  Circular bars

:  stainless steel, brass and aluminium

     -  Tube

:  stainless steel
  • Dial indicator

  • Stainless steel Vernier

  • Stainless steel ruler

  • Rotating and fixed bar supports

  • Sleeve for bars and tube

  • Load hanger

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM533S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
