MM 542 ROTATIONAL FRICTION SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

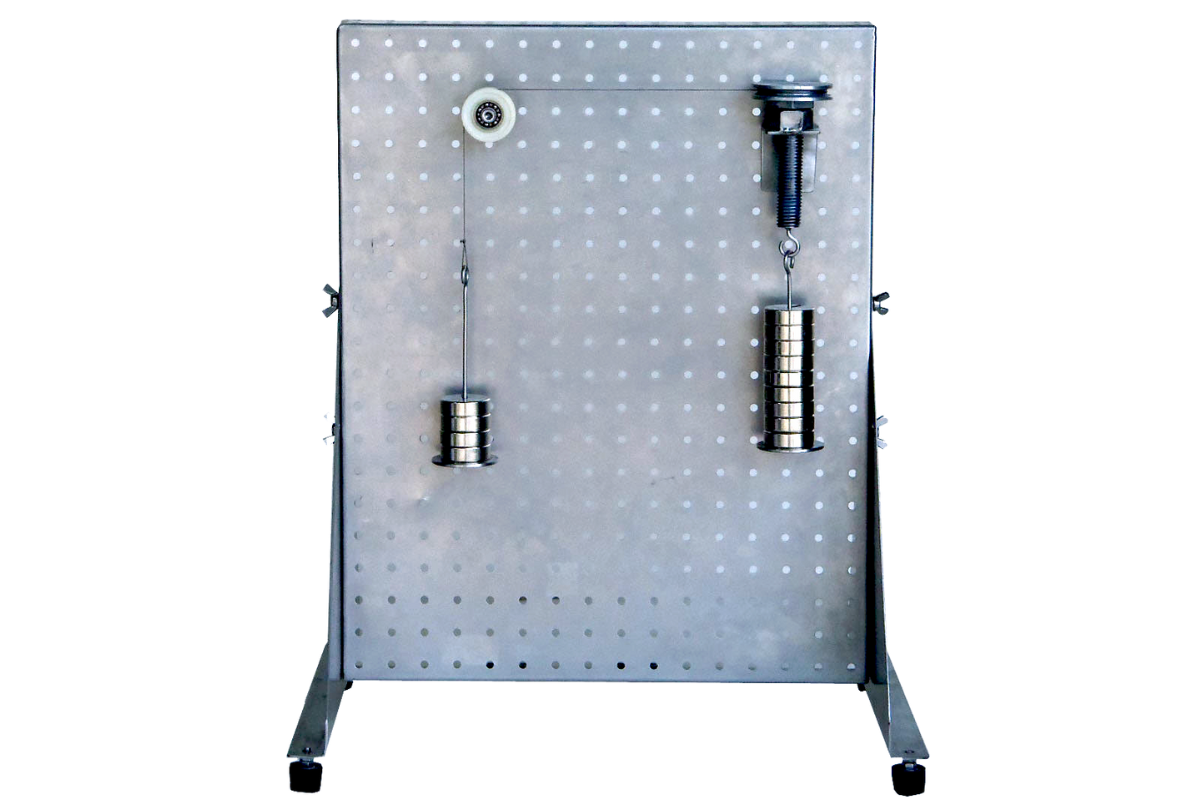

Friction materials includes a screw jack and bushing of different materials. Pulley, load hangers and weights measure the friction. An oil cup is provided for a study of lubrication effect.

Instruction manual is also included.

  • Efficiency of a screw jack.
  • Efficiency of different busing materials.
  • Effect of bushing diameter.
  • Effect of lubrication.
  • Bushings made of brass (2 different diameters) and plastics

  • Screw jack set

  • Oil cup with oil

  • Pulley

  • Cord

  • Load hanger

  • Weights

  • Plastic box




  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM542S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
