MM 512 MOMENT SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

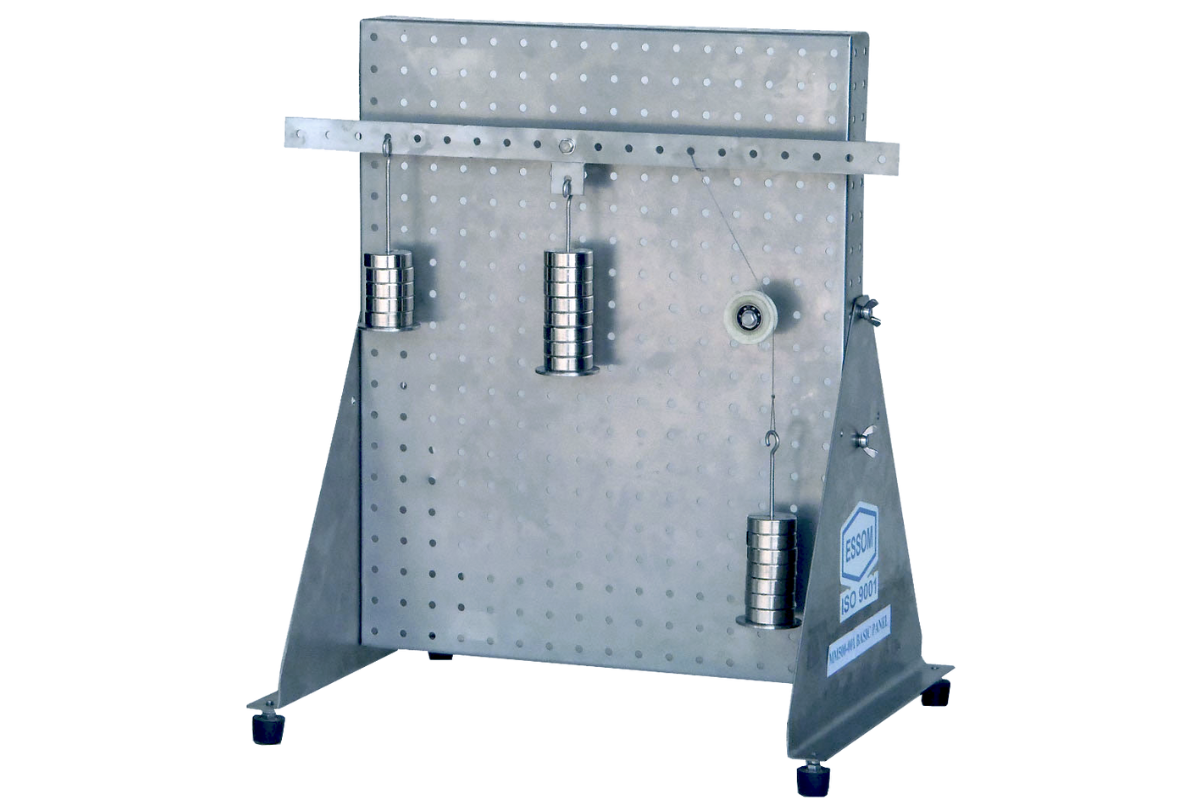

Rigid beam is pivoted and balanced on both sides by load hangers and weights. Reaction from the load can be shown on spring balance.

Instruction manual is also included.

  • Principles of moments.
  • Rigid beam.
  • 1st, 2nd and 3rd order of levers.
  • Bell crank lever.
  • Beam balances.
  • Beam reactions.
  • Plastic Stainless steel beam with hook points
: 400 mm long
  • Bell crank lever with hook points

  • Cord and hook

  • Pin support

  • Pulley

  • Spring balances

  • Load hangers

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM512S
: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
