MM 521 DEFLECTION OF BEAM AND CANTILEVERS SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

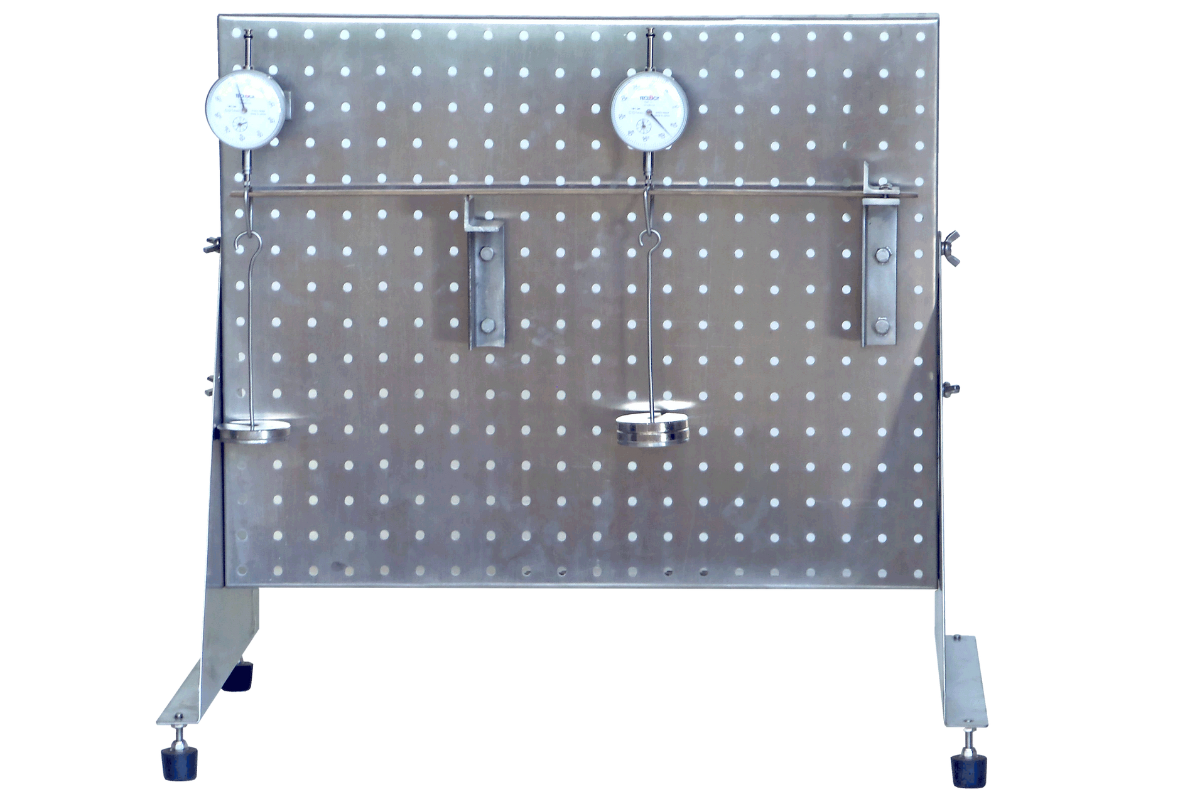

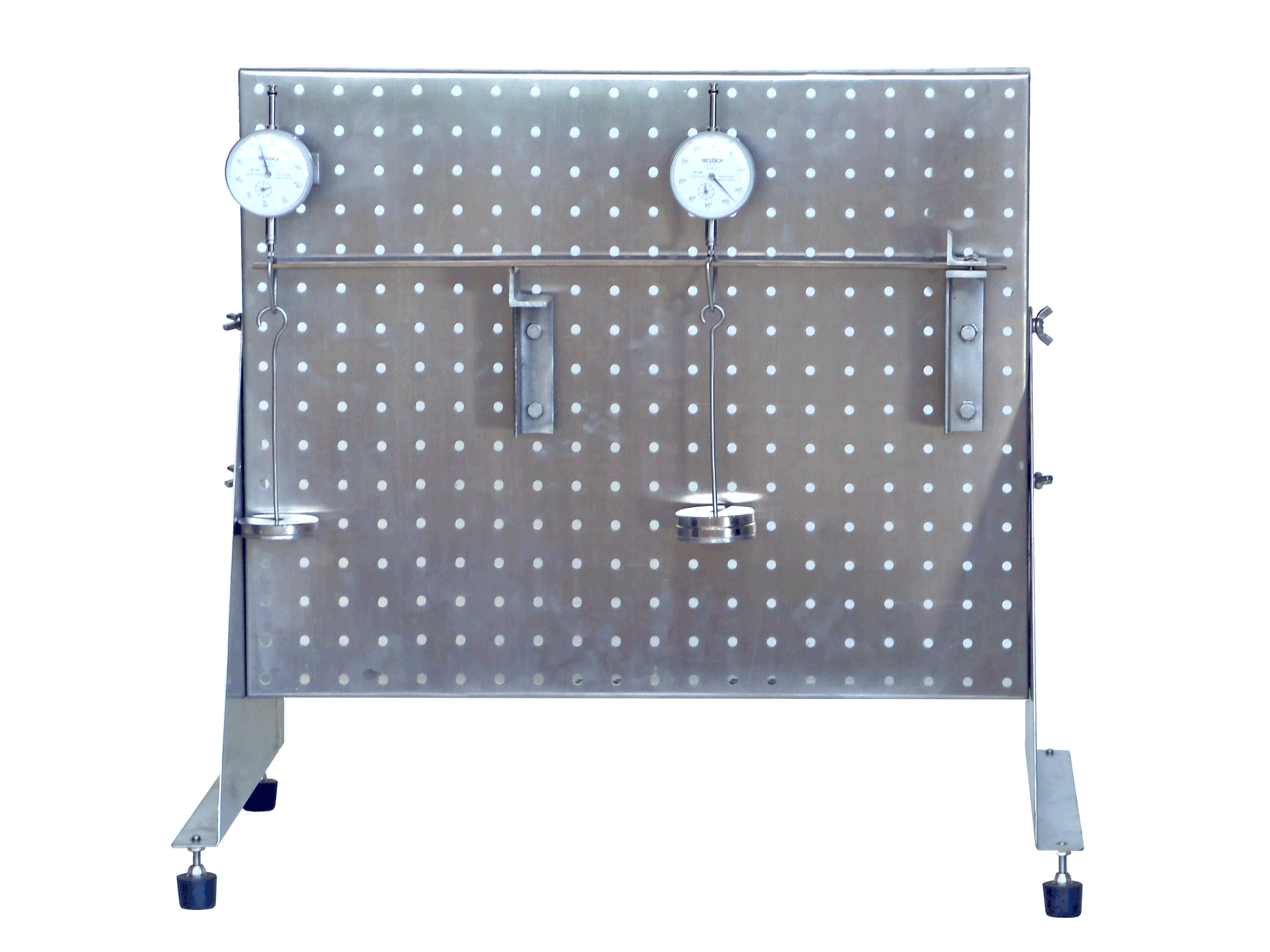

A beam is placed on two supports and loads are applied on the beam by load hangers and weights. Displacement is measured by dial indicator.

Instruction manual is also included.

  • Beam length vs deflection.
  • Beam material vs deflection.
  • Effects of moment of inertia on deflection.
  • Effects of beam supports on deflection.
  • Stainless steel, brass and aluminum beam

  • Stainless steel beam

  • Knife edge support

  • Knife edge and fixed beam support

  • Stainless steel ruler

  • Stainless steel vernier

  • Hanger sliders

  • Dial indicators

  • Load hangers

  • Weights

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM521S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
