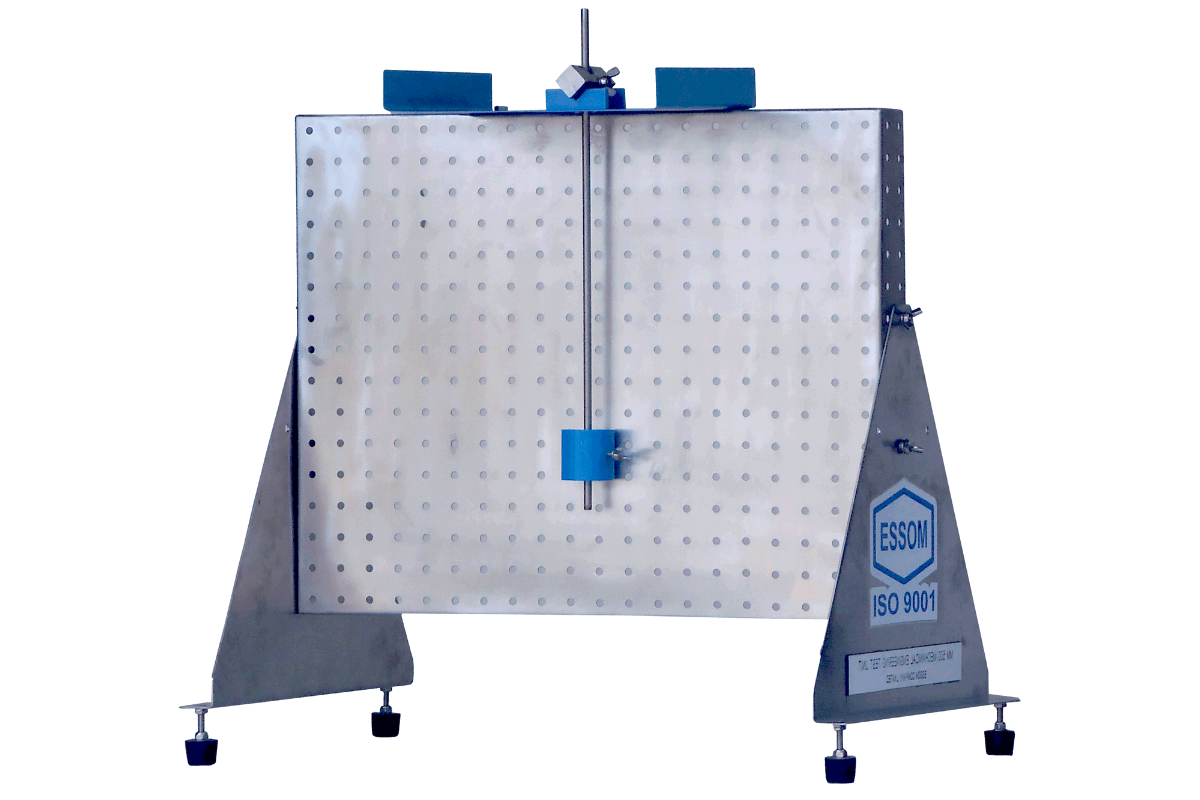

MM 561 SIMPLE HARMONIC MOTION SET

Enquiry

Video

Download

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

This kit includes different pendulums with support, spring mass system, load hanger and weights. A stop watch measures motion period.

Instruction manual is also included.

  • Simple harmonic motion of simple, bifilar and trifilar pendulums.
  • Simple harmonic motion of spring- mass system.
  • Simple harmonic motion for compound and Kater’s pendulums.
  • Top plate support for pendulums

  • Simple pendulums

  • Kater pendulum

  • Bifilar bar

  • Trifilar plate

  • Spring

  • Stop watch

  • Load hanger

  • Weights

  • Plastic box

  • Net (unassembled) Shipping Dimensions WxLxH:  45 x 36 x 14 cm
  • Net Weight:  Approx. 5 kg
  • MM561S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
