MP 201 SINGLE STAGE AIR COMPRESSOR TEST SET, Air Cooled.
The test set is for studying the single stage reciprocating air compressor characteristics.
An industrial type compressor is driven via a vee-belt by a motor with an advanced inverter. The air receiver has, safety valves, pressure switch, a drain valve and a discharge valve. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.
Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.
Effect of compressor speed.
| ||||
| - Type | : Air-cooled, single stage | |||
| - Displacement | : 150 ml or approximate equal | |||
| - Maximum working pressure | : 7 kg/cm2 | |||
| : Approx. 60 L | |||
| ||||
| - Pressure | : Pressure gauge at compressor outlet | |||
| - Air flow rate | : Inlet orifice plate with air box and inclined water manometer | |||
| 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1 | ||||
| - Motor input power | : Advanced inverter | |||
| - Sensors with digital display | : Speed for compressor | |||
| : Temperatures for ambient and outlet air | ||||
| : Atmospheric pressure | ||||
| : 220V 1Ph 50 Hz. Other power supply is available on request. | |||
- Net (unassembled) Shipping Dimensions WxLxH: 80 x 135 x 135 cm
- Net Weight: Approx. 160 kg

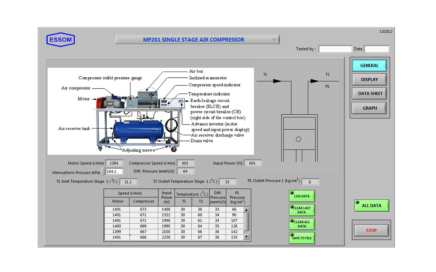

| Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments. |
| P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer. |
| Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power. |
| Computer Interface (computer not included) This includes MP201S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), |
| additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android) |
Other accessories can be supplied on request.
- Other optional equipment, please contact manufacturer ([email protected])
| : Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments. |
