Airflow and air compression > Air compressor test sets





The test set is for studying the two stage reciprocating air compressor characteristics.
For educational purpose, the two stages are separated and can be operated at different speeds. Both stages are connected by vee-belts to the same motor with an advanced inverter. The second stage compressor has three alternative pulleys to vary the pressure ratio between the two stages. An intercooler is provided between first and second stage. The air receiver has a drain valve, safety valve, pressure switches and a discharge valve. The piping system is arranged such that intercooler or second stage compressor can be by passed. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.

  • Effect of compressor speed.

  • Effect of intercooler.

  • Effect of second stage drive ratio.

  • Air water heat exchanger demonstration.

  • Compressors:
- Type:  Air-cooled, two stage
- Displacement:  165 mL or approximate equal
- Second stage:  Single cylinder, completed with three different diameter pulleys
- Maximum working pressure:  12 kg/cm2
  • Air receiver
:  Approx. 60 L
  • Intercooler
:  Water cooled, counter flow heat exchanger
  • Measuring instruments
- Pressures:  Pressure gauges at first stage and second stage outlets, and air receiver
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer, 0-450 mm x 1 mm
    graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power:  Advanced inverter
- Cooling water flow rate:  Rotameter
- Sensors with digital display:  Speed for compressors
 :  Temperatures for ambient, outlet air of each stage, second stage inlet and cooling
    water inlet and outlet


:  Atmospheric pressure
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 110 x 140 x 130 cm
  • Net Weight: Approx. 190 kg
  • MP203S

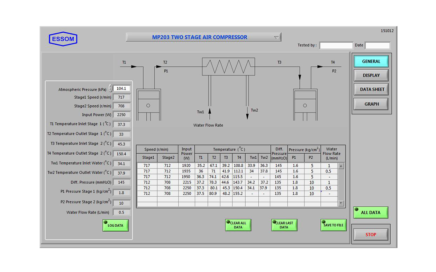

Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP203-002A

Two separate motors (first stage 0.75 kW, second    stage 0.75 kW) with advanced inverters for variable speed ratio between the first and the second stage, instead of single motor and advanced inverter.

  • MP203-020

Additional receiver tank.

  • MP203-050
Computer Interface (computer not included)
This includes MP203S and significant sensor(s) instead of analog measuring instrument(s),
 data acquisition (capture, display, graph and/or data export),

additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
