MP 111 MULTI STAGE CENTRIFUGAL AIR COMPRESSOR DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

This is a bench top unit for studying the multi stage centrifugal air compressor characteristics with data analysis by computer (separately supplied).

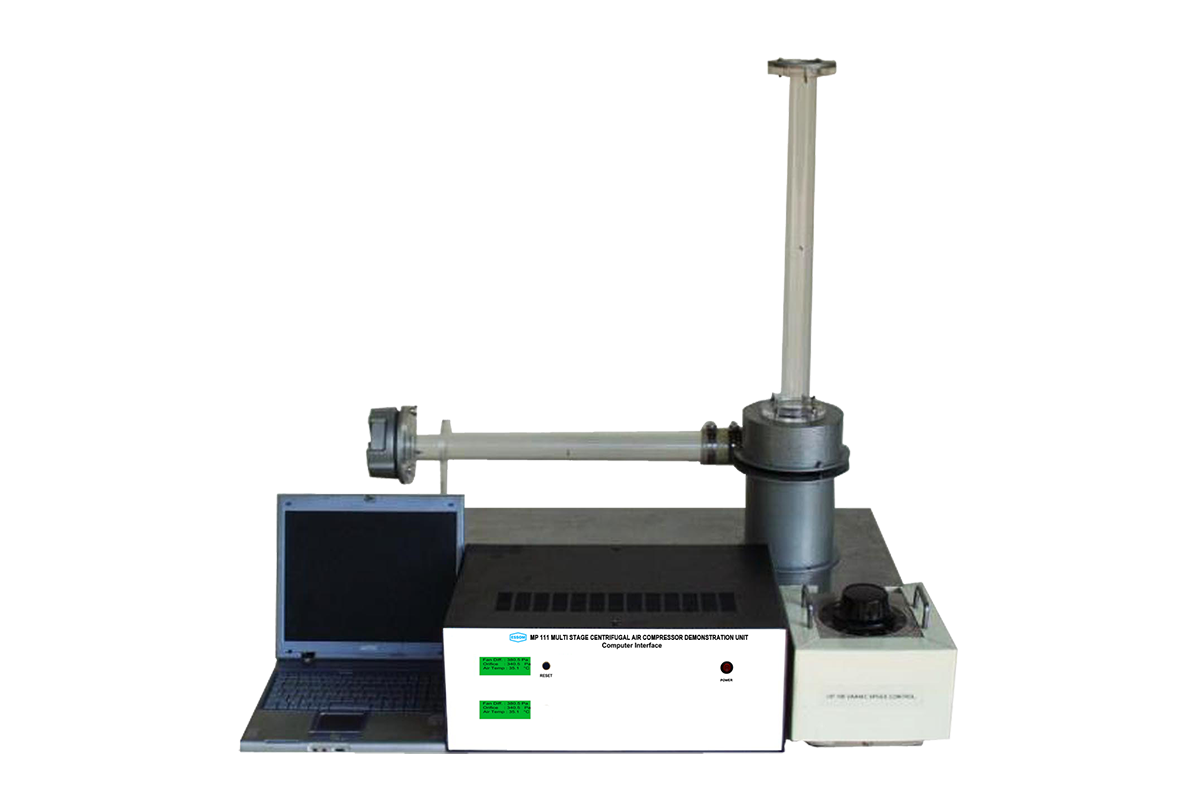

The unit consists of a small multi stage air compressor with a motor on a steel base, inlet and outlet ducts, sensors and software.
Speed control is by a variac.
Instruction manual is also included.

  • Flow rate vs pressure
  • Compressor input, output, and overall efficiency
  • Effect of speed on compressor performance
  • Compressor

- Type: 2 stage, centrifugal
- Rated maximum flow rate: 0.03 m3/s
- Rated maximum pressure: 25 kPa
  • Inlet duct
: Transparent with orifice
  • Outlet duct
: Transparent with damper
  • Speed control
: Variac
  • Sensors with digital display
: Differential pressure across the fan
 : Differential pressure at the orifice
 : Temperature of inlet air
 : Compressor speed
 : Input power
 : Atmospheric pressure
  • Computer interface unit

  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Power supply : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
:  55 x 82 x 35 cm
  • Net weight
:  Approx. 23 kg
