MP 125 COMPACT AXIAL FLOW FAN TEST SET
Enquiry
Video
Download

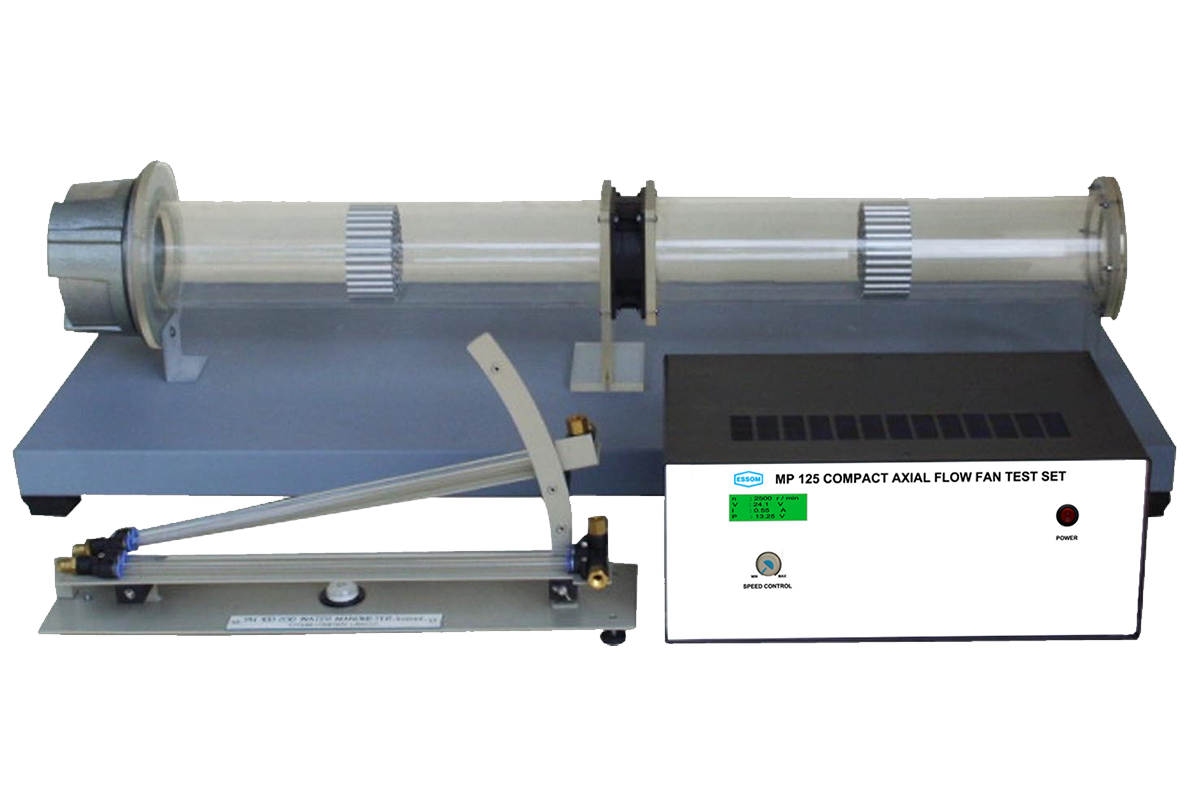

This is a bench top unit for a studying of axial flow fan characteristics.
The unit consists of a small axial flow fan with DC motor on a steel base, a speed control switch, inlet and outlet ducts, and measuring instruments.
Instruction manual is also included.
- Flow rate vs pressure
- Fan input, output and overall efficiency.
- Effect of speed on fan performance.
|
||
| - Maximum flow rate | : 2.5 m3/min | |
| - Maximum pressure | : 0.10 kPa | |
|
: Transparent with flow straighteners and inlet orifice | |
|
: Transparent with flow straighteners and damper | |
|
: DC speed control | |
|
||
| - Air flow | : Inlet orifice with inclined water manometer | |
| - Differential pressure across fan | : Twin inclined water manometers (for air flow rate and differential pressure across fan), | |
| 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1 | ||
| - Temperature | : Thermometer | |
| - Atmospheric pressure | : Barometer | |
| - Sensors with digital display | : Sensors with digital display | |
| : Fan speed | ||
|
: 220 V 1 Ph 50 Hz. Other power supply is available on request. |
| : 85 x 360 x 130 cm | |
| : Approx. 430 kg |
|
Learning Software |
| to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments. |
- Other optional equipment, please contact manufacturer ([email protected])
