RE 310 EDUCATIONAL WIND TURBINE, Computer Interface

Enquiry

Download

The unit is for a study of wind turbine characteristics.

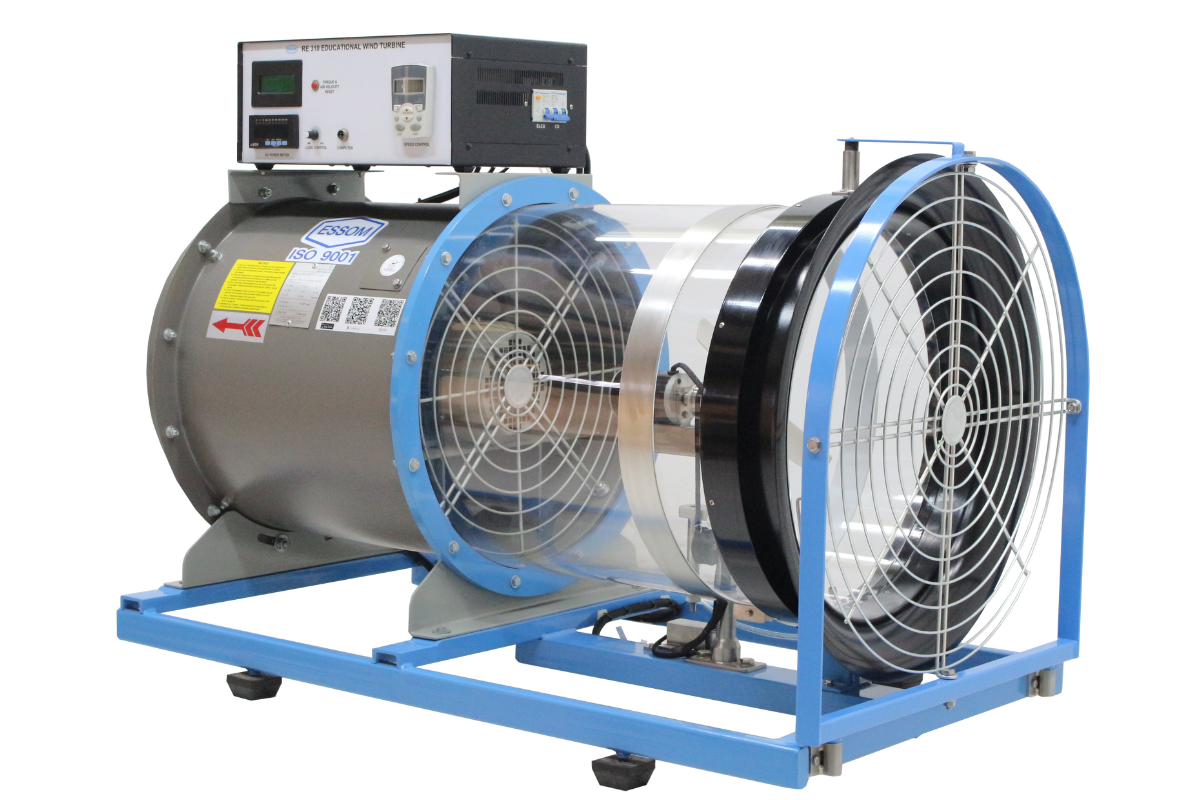

The turbine consists of axial flow fan with speed control and flare entrance, a wind turbine, DC generator with resistance load, dynamometer, and measuring instruments. The turbine and blade angle can be adjusted using a special device. The unit can also be used for testing different blade design by students.

Instruction manual is also included.

  • Calculation of wind power.

  • Turbine output VS wind speed.

  • Turbine efficiency.

  • Effect of blade angle.

  • Effect of number of blades.

  • Effect of yaw angle adjustment (optional)

  • Fan

- Diameter:  500 mm inside diameter
- Maximum wind speed:  20 m/s
  • Wind speed control
:  Inverter
  • Turbine casing
:  Steel, 500 mm inside diameter × 500 mm long, with transparent window and front guard.
  • Turbine blade angle setting device

  • Generator dynamometer
:  1
  • Electrical load
:  1
  • Turbine output

- Maximum mechanical power:  130 W
  • Measuring instruments

- Wind speed:  Pitot tube
- Sensors with digital display:  Speed for turbine
 :  Torque
 :  Voltage and current for electrical output power
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Computer interface unit
  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Net (unassembled) Shipping Dimensions WxLxH: 65 x 120 x 100 cm
  • Net Weight:  Approx. 90 kg
  • RE310-001
Transparent turbine casing instead of standard steel casing
  • RE310-002
Yaw angle adjustment ability
  • RE310-003
Battery and lamp load
  • RE310-004
Different set of blade shape
