ST 311 BENDING MOMENT

Enquiry

Download

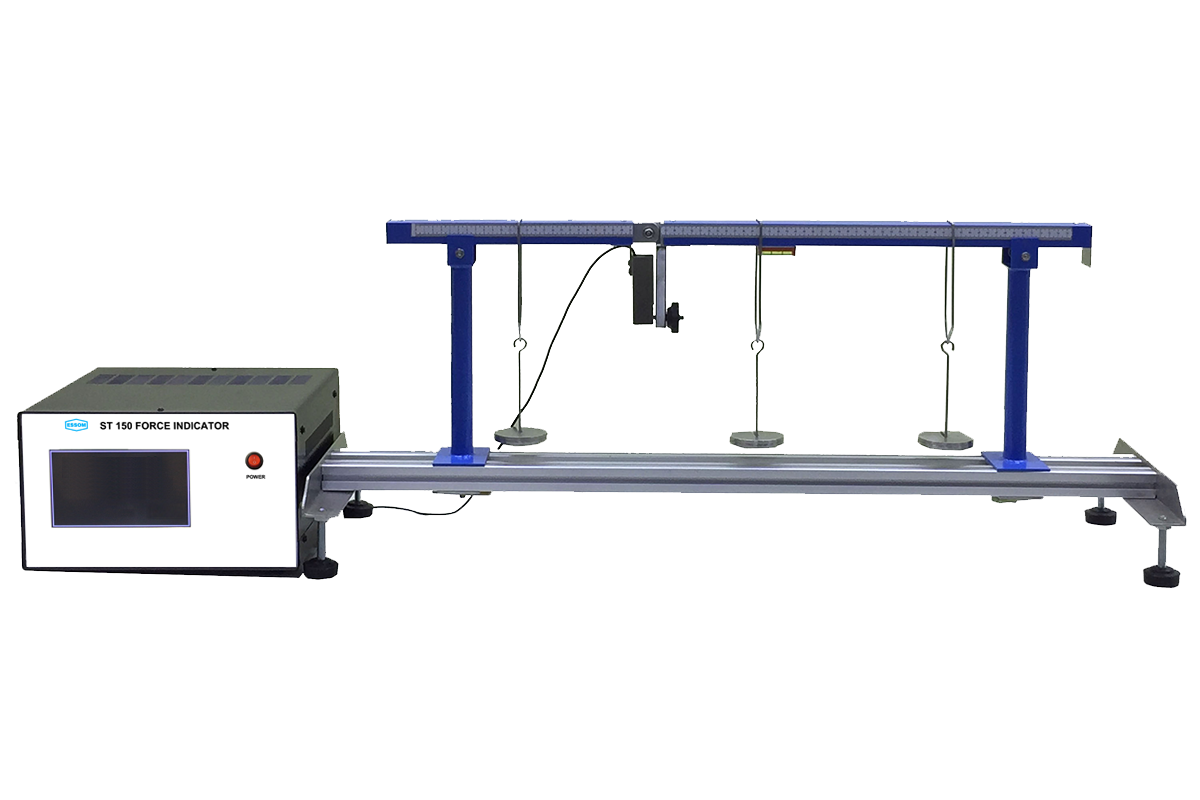

This equipment is used for measurement of bending moment on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in compression, hence resists and determines bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included

  • Visual demonstration of the bending moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot











  • Net (unassembled) Shipping Dimensions WxLxH: 125 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST311S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST311-055
Computer Assist (computer not included)
                                  This includes ST311S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST311S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
