ST 318 EQUILIBRIUM OF A RIGID BODY

Enquiry

Video

Download

This equipment is used for studying the ground and wall reactions as a weight is moved up a rigid ladder. It is to be used with ST300 Universal Structural Frame (separately supplied).

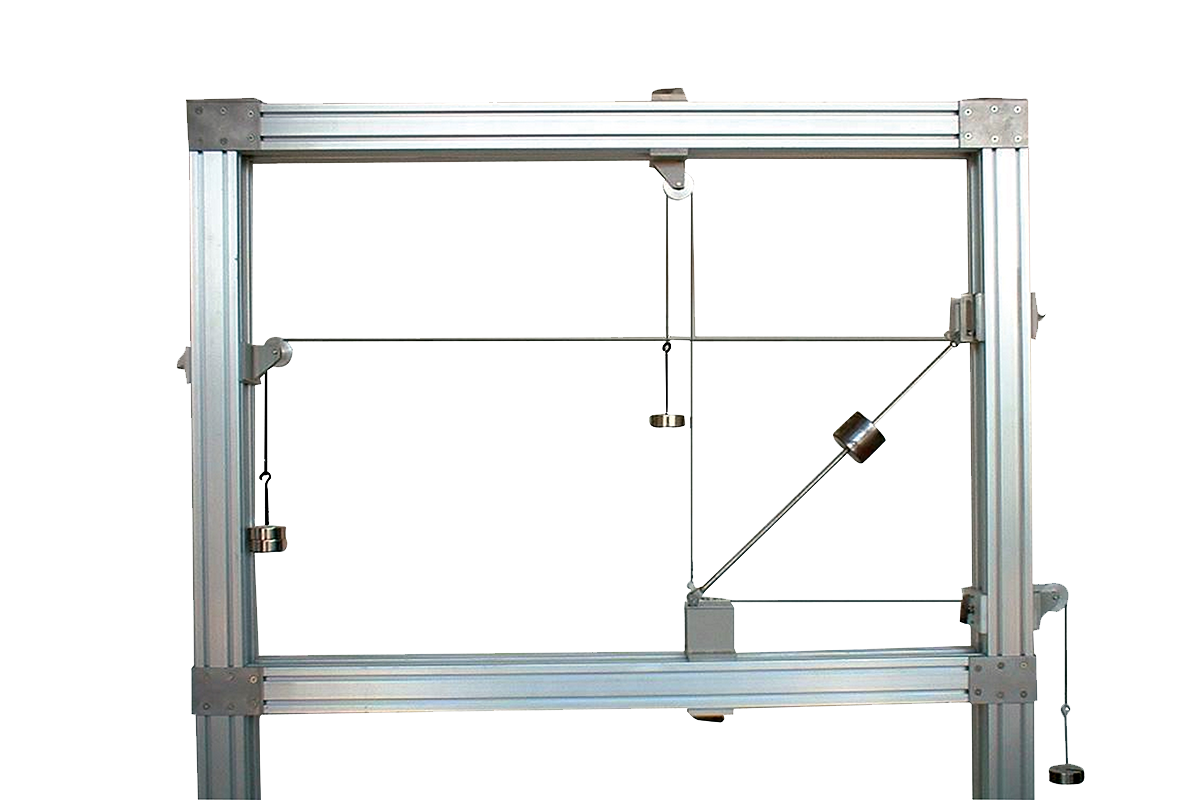

A ladder with rollers at each end leans against a wall.  Reactions at both ends of the ladder are measured by nylon

cords tensioned by weights. A sliding weight can be clamped at any position on the ladder and the ladder is prevented from falling by a stirrup at the top.

Instruction manual is also included.

  • Determine ground and wall reactions as a body moves up a ladder.

  • Experimental verification of calculations using the three conditions of equilibrium

  • Ladder
:   500 mm long
  • Pulley sets
:   3
  • Cords
:   3
  • Sliding weight
:   1
  • Load hangers and cords
:   3
  • Weights
:   1 lot
  • Track plates
:   2






  • Net (unassembled) Shipping Dimensions WxLxH: 25 x 70 x 20 cm
  • Net Weight:  Approx. 13 kg
  • ST318S
