ST 315 SHEAR CENTER

Enquiry

Download

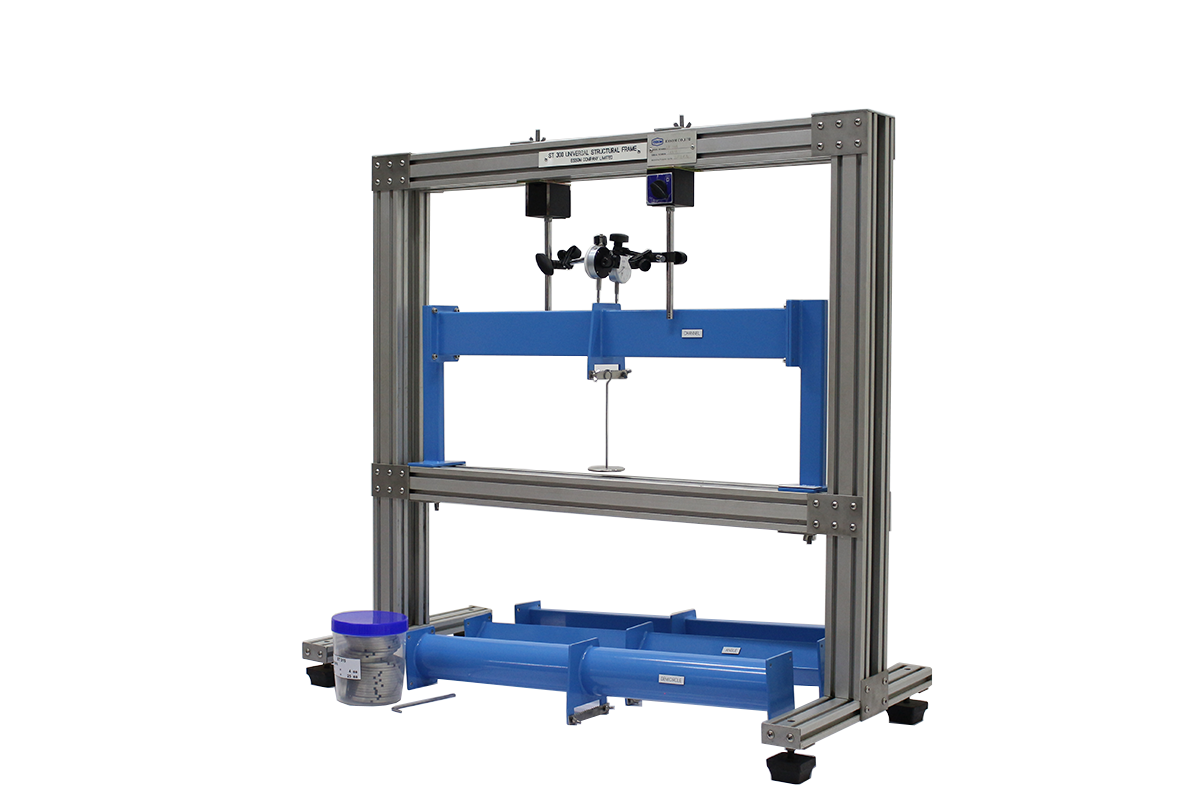

The equipment is used for studying the plane of traverse loading without twisting for selected standard sections. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

Interchangeable beam specimens are made from steel sheet or approximate equal with welded-on end plates and a central loading plate which has a provision at the bottom for loading at different eccentricities from the beam axis. The end plates are attached to two flanged supports. A load is hung at the bottom of the central loading plate and two dial indicators are used to measure deflections of both ends of the plate.  The plane of zero twist is the plane of shear center.

Instruction manual is also included.

  • Effect of shear force by a variation of point load

  • Effect of shear force by different beam sections

  • Variation of shear force for various loading positions

  • Beam length
:  700 mm
  • Beam section

- Channel:  1
- Semicircle:  1
- Angle:  1
- “Z”:  1
  • Load hanger
:  1
  • Weights
:  1 lot
  • ST131 Dial Indicators
:  2
  • Net (unassembled) Shipping Dimensions WxLxH: 75 x 75 x 20 cm
  • Net Weight:  Approx. 20 kg
  • ST315S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST315S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
