Structure and accessories > Force and moment

ST 317 EQUILIBRIUM OF FORCES

Enquiry

Video

Download

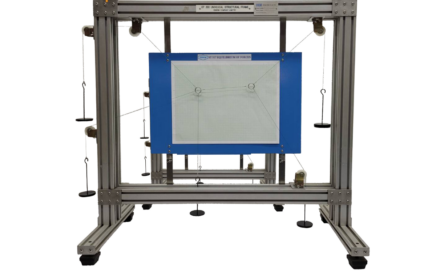

The equipment is used for studying the equilibrium of concurrent and non-concurrent forces in a single plane. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

Pulleys are fitted around the frame and multi directional forces are produced with nylon cords by weight hangers and weights. A graph paper (not supply) attached to the board is used for recording the lines of forces. Two rings cord for concurrent or non-concurrent forces and a device for marking the lines of the cords are provided.

Instruction manual is also included.

  • Equilibrium of a set of forces acting in a vertical plane

  • Equilibrium of concurrent and non-concurrent forces

  • Force board
:  300 x 500 mm
  • Two rings cord

  • Cord marking pen

  • Angular scale

  • Pulley set
:  1 set
  • Nylon cords
:  6
  • Load hangers
:  6
  • Weights
:  1 lot





  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 60 x 25 cm
  • Net Weight:  Approx. 17 kg
