ST 342 FORCES IN TRUSS

Enquiry

Video

Download

This equipment allows measurement of axial forces in pin-jointed truss members and compare them with calculated values. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

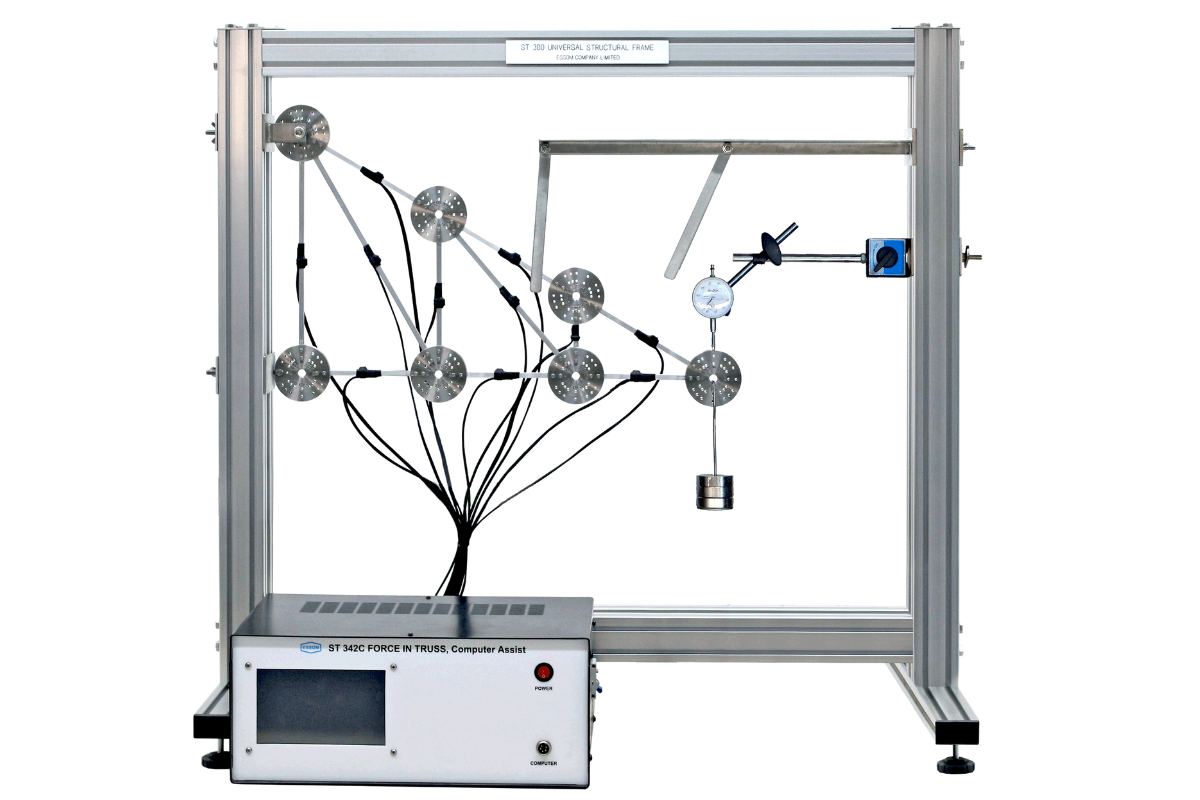

The truss consists of 19 members for construction of different cantilevered trusses where loading can be applied at any of the bottom joints by a load hanger and weights. An indicator measures truss deflection. The joints are designed to simulate pin-joints. Each truss member has a strain gauge. Each strain gauge is wired to form a full bridge with temperature compensation and zero adjustment in the strain indicator. A steady bar with three adjustable forks is provided to ensure lateral stability.

Instruction manual is also included.

  • Study of Bow’s Notation, strains, stresses, forces and deflections in various frameworks

  • Force analysis by Method of Joints

  • Force analysis by the use of the strain energy method.

  • Member approximate cross-section
:  30 mm2
  • Members with strain gauge bridge for 4 common trusses
:  13
  • ST341-001 Force/Strain Indicator
:  1
  • Load hanger
:  1
  • Weights
:  1 lot
  • ST131A Dial Indicator
:  1
  • Power supply
:  220 V, 1 Ph, 50Hz. or as required






  • Net (unassembled) Shipping Dimensions WxLxH: 65 x 70 x 20 cm
  • Net Weight:  Approx. 24 kg
  • ST342S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST342-002
Additional members with strain gauge bridge and member joints for other trusses
  • ST342-055
Computer Assist (computer not included)
                                             This includes ST342S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST326S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
