ST 355 SUSPENSION CABLE

Enquiry

Video

Download

This equipment is used for studying the inter-action between suspension cables and load measuring supports with uniform or non-uniform distributed load on the catenary cable. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

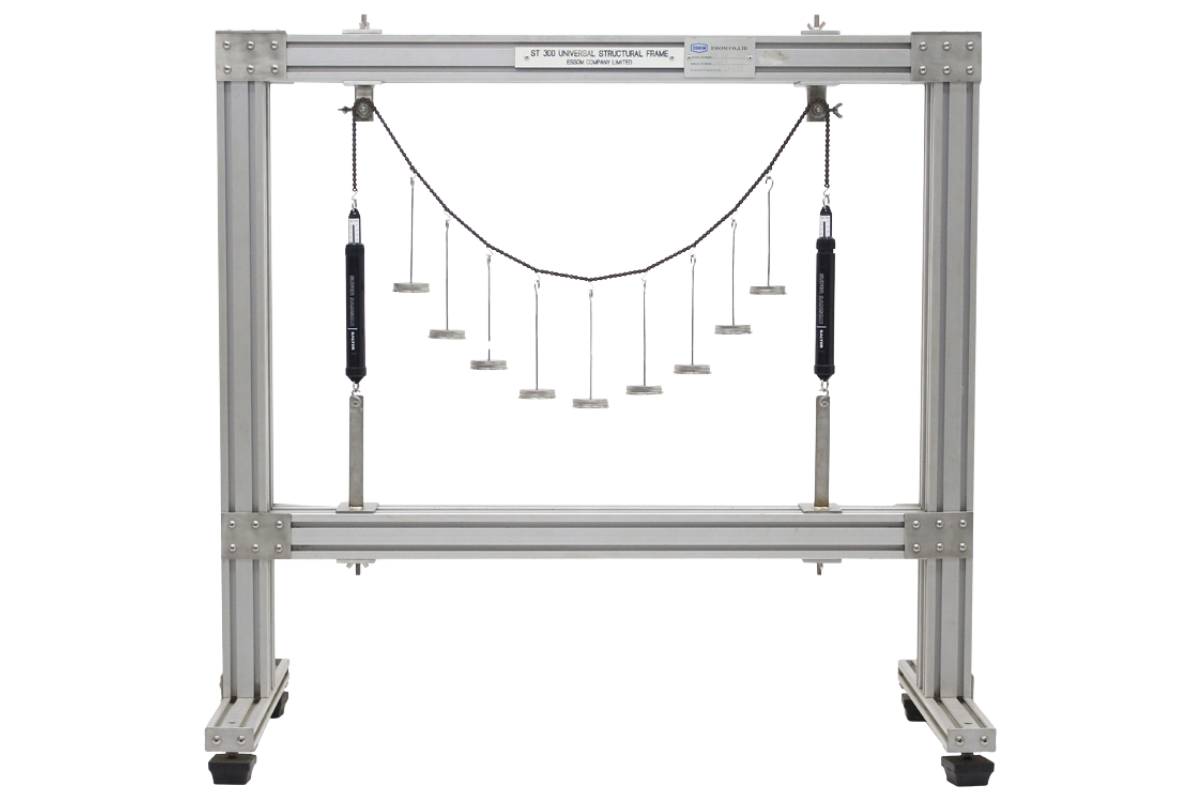

A light roller chain (the cable) is held by two sprocket pulleys and a spring balance is connected to each end of the roller chain. Load hangers are evenly placed along the roller chain whose length simulates a parabolic curve. Weights can be put on the load hangers to create symmetrical and non-symmetrical cable.

Instruction manual is also included.

  • Analysis using catenary and parabola theory

  • Cable weight and tension

  • Comparison of a symmetrical suspension cable and catenary

  • Unsymmetrical suspension cable

  • A point load on a suspension cable

  • Roller chain
:  1000 mm long
  • Load hangers
:  9
  • Weights
:  1 lot
  • Sprocket pulleys
:  2
  • Spring balances
:  2
  • Hanger slider
:  2







  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 40 x_20 cm
  • Net Weight:  Approx. 3.5 kg
  • ST355S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
ST355-055  Computer Assist (computer not included)
                                    This includes ST355S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST355S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
