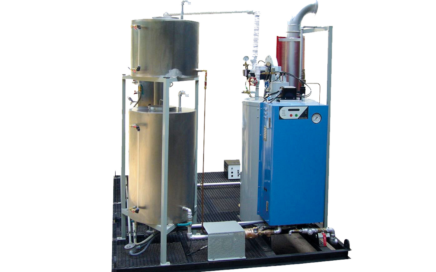

TH 101 TRAINING BOILER, 100 kg/hr
This is a set of steam boiler and standard accessories for a study of boiler performance.
The basic unit consists of a small industrial type boiler with a burner, a feed water system, a fuel system, and instruments for monitoring boiler operation as well as instruments for control and safety. The complete unit is arranged as a package on a pallet for easy site installation. Optional equipment are available for additional experiments.
Instruction manual is also included.
Pressure, temperature and flow measurements.
Heat of combustion, heat given to steam and boiler efficiency.
| The boiler set consists of: | ||||
|
||||
| - Type | : Vertical, water tube | |||
| - Rated output | : Approx. 63 kW (53,900 kcal/h) | |||
| - Equivalent evaporation | : Approx. 100 kg/h steam | |||
| - Maximum working pressure | : 10 kg/cm2 (0.98 MPa) | |||
| - Measuring instruments | : Pressure gauge for steam outlet | |||
| : Temperature sensor for feed water, outlet steam and exhaust stack | ||||
| - Safety devices | : Safety valve | |||
| : Low level alarm | ||||
| - Boiler accessories | : Steam pressure regulator | |||
| : Steam separator | ||||
| : Feed water pump | ||||
| : Stack, 2x 2.4 m stainless steel with elbows | ||||
|
||||
| - Type | : Forced draft, pressure atomized | |||
| - Control | : On-Off | |||
| - Fuel | : Diesel or kerosene (LPG is available as an option.) | |||
|
: Fuel tank, fuel meter and oil strainer | |||
|
: Resin filter for public water | |||
| : Soft water tank | ||||
| : Water meter | ||||
| : Stopwatch | ||||
|
: 220V, 1 Ph, 50Hz. Other power supply is available on request. |
Boiler Package
Net (unassembled) Shipping Dimensions WxLxH:
180 x 300 x 200 cm
Net Weight: Approx. 650 kg
Cooling Tower
Net (unassembled) Shipping Dimensions WxLxH:
110 x 110 x 150 cm
Net Weight: Approx. 95 kg
- TH 101-013 Condenser (requires TH101-014, separately supplied)
Description
The unit is used for studying of heat transfer in a heat exchanger as well as recover condensate for reuse. The unit consists of a counter flow steam tube heat exchanger and instruments for measurement of temperatures, and cooling water flow rate.
Typical experiment
- Condenser heat transfer efficiency
Technical data
| - Type | : Steam tube |
| - Accessories | : Cooling water pump |
| : Condensate transfer pump | |
| : Condensate tank | |
| : Strainer | |
| Measuring instruments | |
| - Flow rate | : Water meter |
| - Sensor with digital displays | : Temperatures for cooling water inlet and outlet |
| Cooling Tower (requires TH101-013, separately supplied) |
| Description | |
| The unit is used for recovering of condenser cooling water as well as studying of cooling tower efficiency. | |
| The cooling tower is to recycle cooling water in case TH101-013 condenser is used. | |
| The unit consists of a cooling tower unit, a storage tank, a circulating pump and temperature sensors. | |
| Typical experiment | |
| - Cooling tower efficiency | |
| Technical data | |
| - Cooling tower capacity | : Up to 15 RT |
| - Circulating pump | : 0.75 kW |
| Measuring instrument | |
| - Wet bulb temperature | |
| Digital flue gas analyzer (testo300 or equal) for O2 and CO contents |
| Portable pH and TDS meter |
| Water Hardness tester |
| Sand filter for water with suspended materials |
| Carbon filter for water with odour or rust |
- Other type of fuel is available (i.e. LPG) on request.
- Other optional equipment, please contact manufacturer ([email protected]) ([email protected])
