TH 510 SPLIT TYPE AIR CONDITIONER SYSTEM

Enquiry

Video

Download

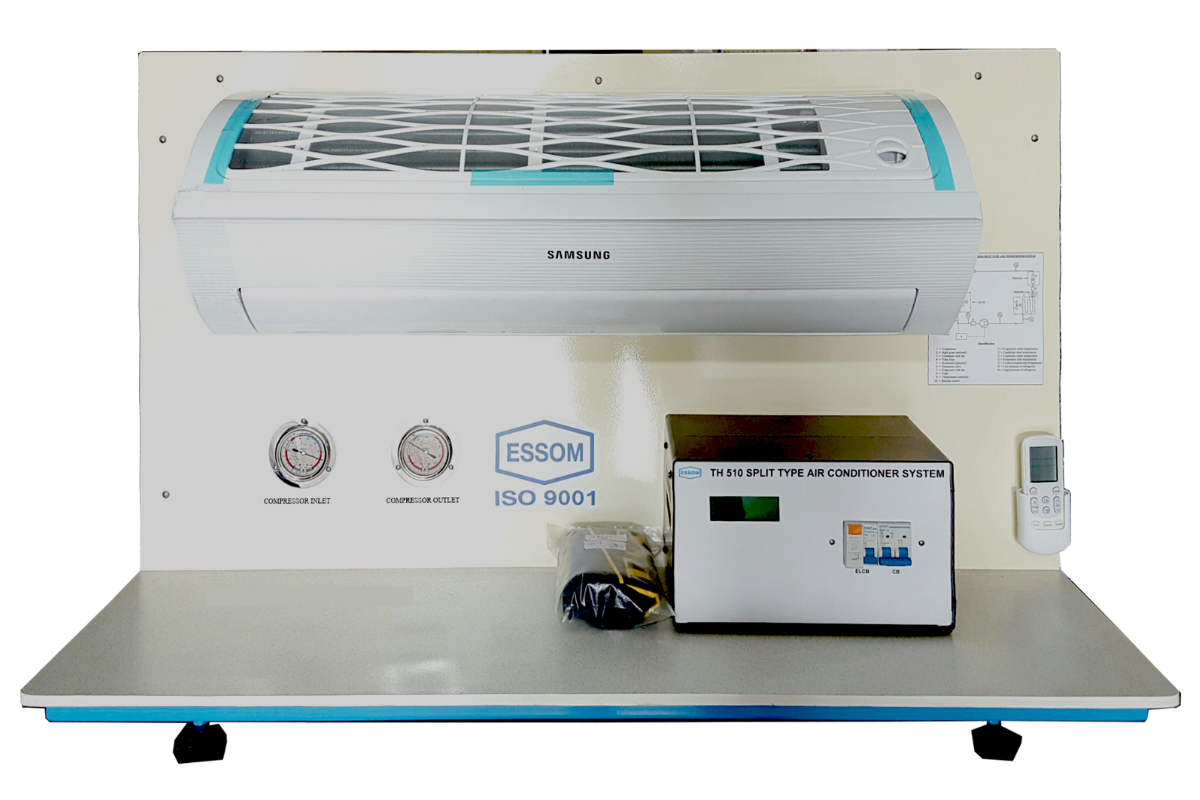

This unit is used for the demonstration of split type room air conditioning operation. Individual components are clearly shown. Temperatures and pressures at various points are indicated.

Instruction manual is also included.

  • Study of layout and process diagram
  • Observation of pressures and temperatures
  • Remote control operation
  • Cooling capacity
: Approx. 2.5kW or 9000 BTU
  • Compressor type
: Rotary
  • Refrigerant
: R32
  • Measuring instruments

- Pressure gage: Compressor inlet and outlet
- Sensors with digital display: Temperatures for compressor inlet, outlet, condenser outlet, expansion valve outlet and
air -side of evaporator inlet and outlet

  • Remote control

  • Power supply
: 220 V, 1 Ph, 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 76 x 123 x 114 cm

Net weight  : Approx. 75 kg

  • TH510S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH510-001
Sight glasses for observation of state of refrigerant
  • TH510-010
Anemometer 0-10 m/s
  • TH510-011
Climate chamber



  • TH510S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
