TM 442 THICK CYLINDER

Enquiry

Video

Download

The equipment is used for studying a stress profile in the wall of a thick cylinder.

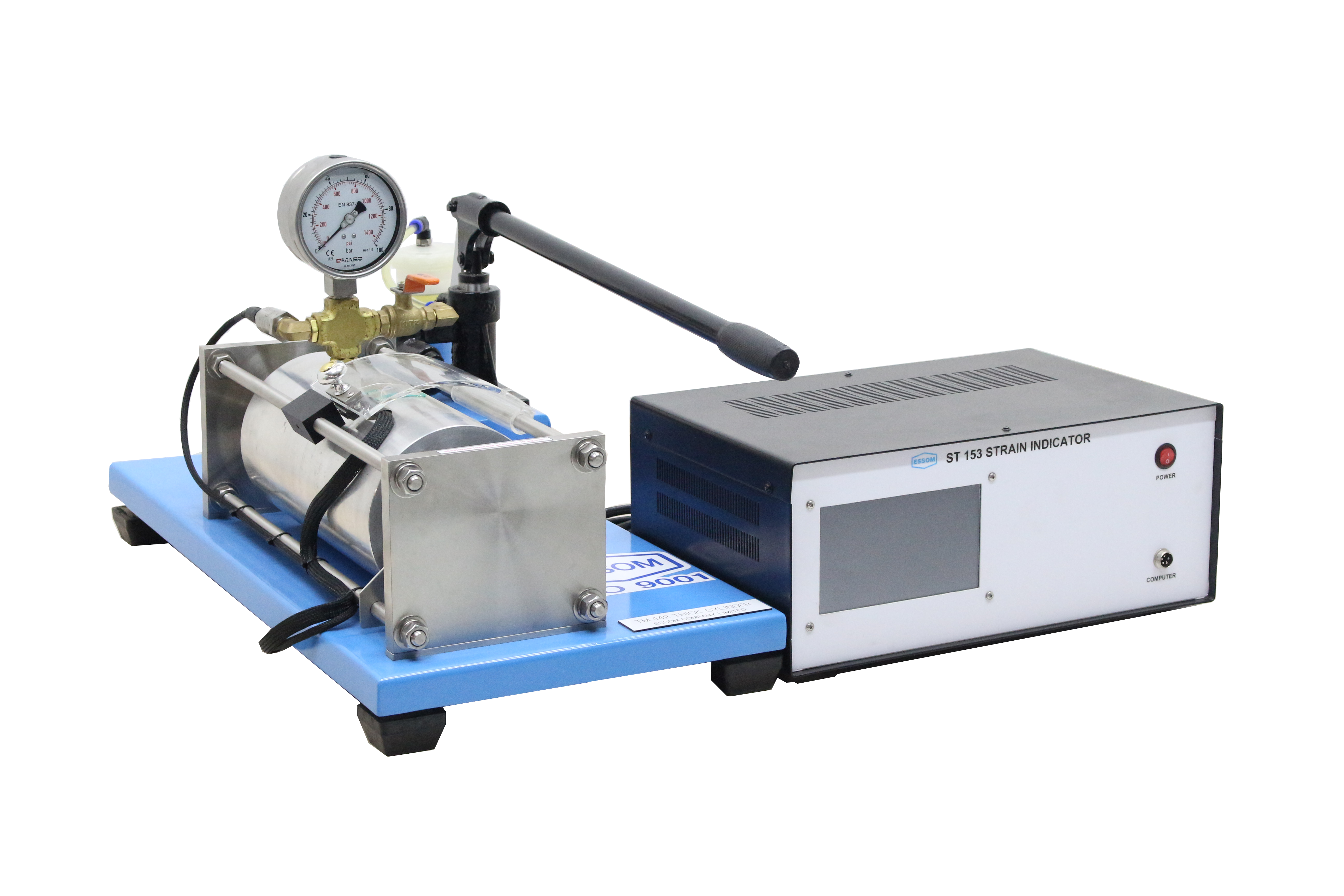

Two halves of thick aluminum alloy cylinders are cemented and clamped together. A hand operated hydraulic pump transmits pressure to the inside of the cylinders via the clamping bolt. The pressure is indicated by a pressure gauge.

Strain gauges are of the same gauge factor and the gauges are attached radially and circumferentially along the wall thickness and filled with jointing material. Additional strain gauges are attached on the inside and outside surfaces of the cylinder.  Each strain gauge is wired to form a full bridge with temperature compensation gauge and zero adjustment in a bridge box with strain gauge indicator.

Instruction manual is also included.

  • Measurement of strains, hence stresses, along the cylinder wall thickness.

  • Comparison of the actual strain readings with theoretical values.

  • Cylinder

- Length:  300 mm
- Outer diameter:  180 mm
- Maximum internal pressure:  7 N/mm2
  • Pressure gauge
:  100 kg/cm2
  • Strain gauges
:  14 ea. at different angles.
  • Strain indicator
:  16 channels
  • Power supply
:  220V, 1 Ph, 50Hz. Other power supply is available on request.


  • Net (unpacked) Shipping Dimensions WxLxH: 60 x 65 x 48 cm
  • Net Weight:  Approx. 48.5 kg
  • TM442-050
Computer Interface (computer not included)
                                   This includes TM442S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

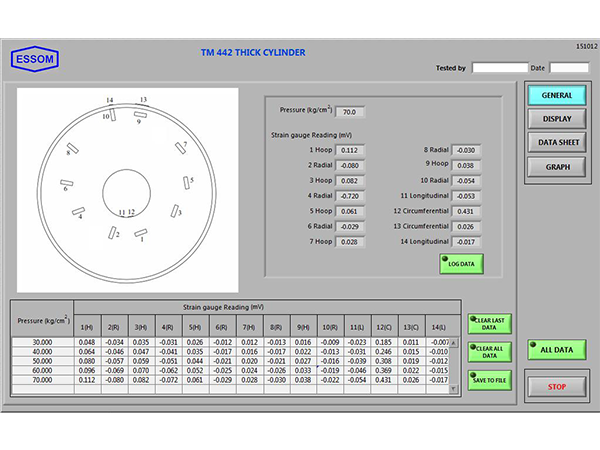

  • TM442S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
