CF 501 FIXED AND FLUIDIZED BED APPARATUS

Enquiry

Video

Download

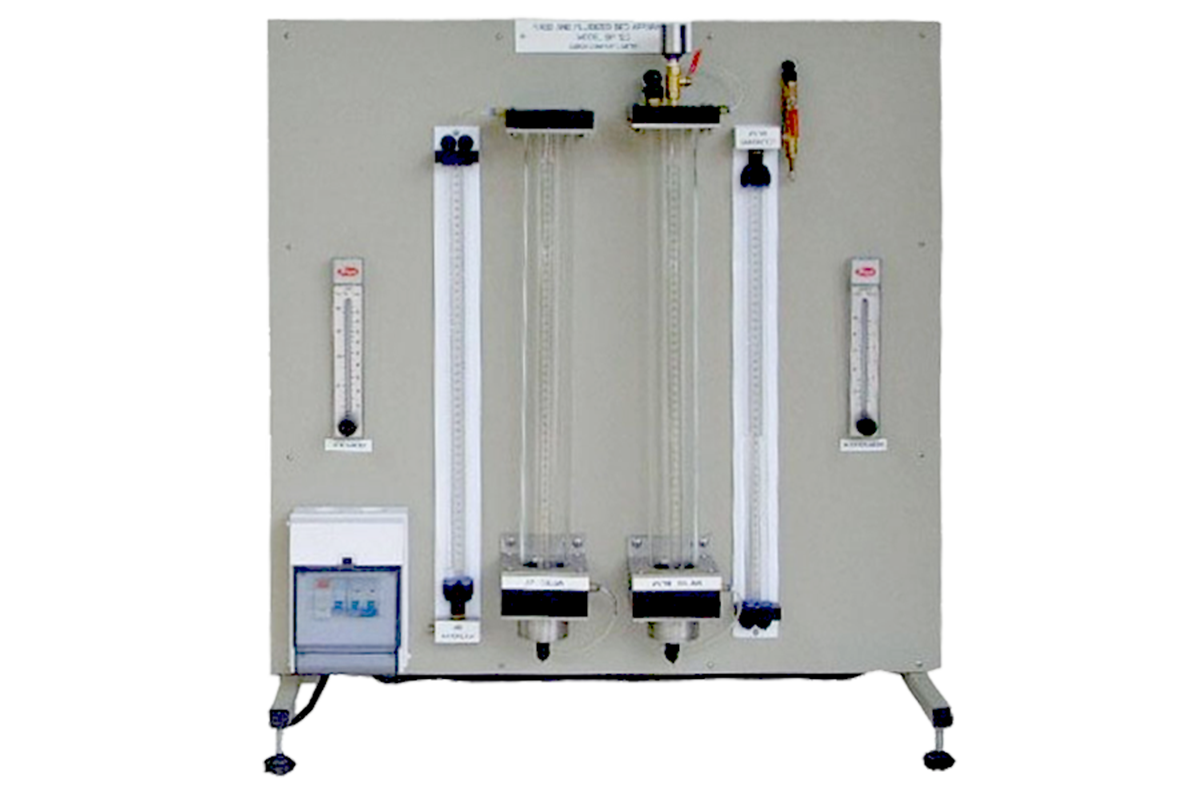

This bench top apparatus is designed for a study of fluid bubbling phenomena in fixed and fluidized beds of solid particles.

The apparatus consists of a water and an air system. Each has a fluidized column and a pump. Air or water is supplied to the column via bottom porous plate and escape to the top. Control valve varies the rate of flow. Two sizes of bed materials are supplied.   Measurement of flow rate is by flow meter and pressure drop is by manometer.

Instruction manual is also included.

  • Visualization of fluidization

  • Pressure drop through packed and fluidized beds for both water and air systems

  • Observation of difference between particulate and aggregative fluidization

  • Verification of Carman - Kozeny equation.

  • Fluidized column
:  Glass tube with 1 mm scale
 :  50 mm diameter x 550 mm long
  • Bed plate
:  Wire mesh
  • Manometer
:  For air and water
  • Flow meter
:  For air and water
  • Water pump
:  1
  • Air compressor
:  1
  • Bed material
:  Alumina oxides or washed sand, two sizes
  • Power supply
:  220 V, 1 Ph, 50 Hz.  Other power supply is available on request.





  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 50 x 80 cm
  • Net Weight:  Approx. 35 kg
  • CF501S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
