MP 100 AIR FLOW BENCH

Enquiry

Download

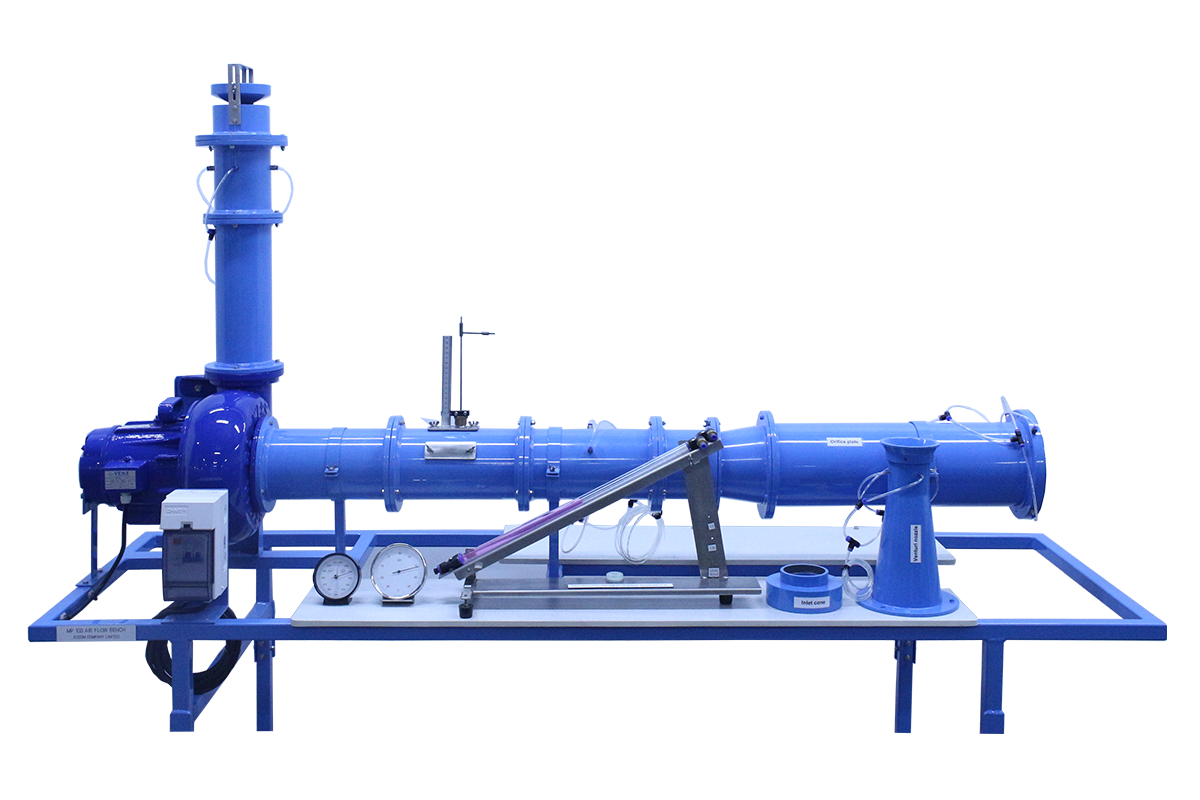

This is a bench top unit for studying the air flow measurement and air flow characteristics in optional apparatus.
The set uses an industrial type centrifugal blower with inlet and outlet ducts, flow straighteners, a damper, various flow measuring devices using manometers for the study of air flow measurement according to BS848, BS1042 and ISO5167. Various measuring devices for the study of air flow are provided as an option.
Instruction manual is also included.

  • Air flow measurement
  • Bernoulli’s experiment (optional)
  • Flow around a bend (optional)
  • Air flow in pipes (optional)
  • Free jet study (optional)
  • Air flow drag (optional)
  • Boundary layer (optional)
  • Flow Visualization (optional)
  • Blower ratings:
-  Maximum flow rate (unchoked) :  12 m3/min
-  Maximum head (fully choked) :  80 mm water
  • Inlet duct
:  with flow straightener
  • Outlet duct
:  with flow straightener and damper
  • Measuring instruments:
-  Air flow rate :  Venturi nozzle, orifice plate, inlet cone, and traveling pitot using inclined water manometer
-  Differential pressures :  Twin inclined water manometers., 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
-  Temperature :  Thermometer
  • Accessories
:  Barometer
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
:  75 x 245 x 130 cm (fully installed 75x275x200 cm)
  • Net weight
:  Approx. 200 kg
  • MP100S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry
from analog measuring instruments.
  • MP100-010
Anemometer
  • MP100-020
Air flow adapter
  • MP100-050

Computer Interface (computer not included)

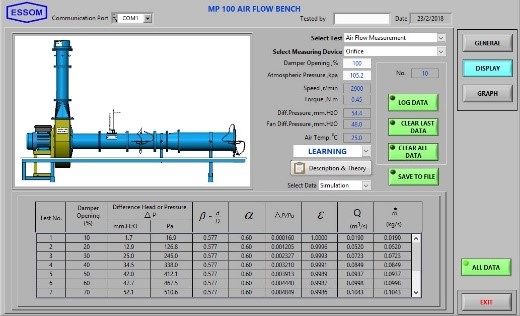

This includes MP100S and significant sensor(s)instead of analog measuring instrument(s),
data acquisition (capture, display, graph and/or data export), additional software function for real-time
data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
