MP 110 CENTRIFUGAL FAN DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

This is a bench top unit for studying the small centrifugal fan characteristics with data analysis by computer (separately supplied).

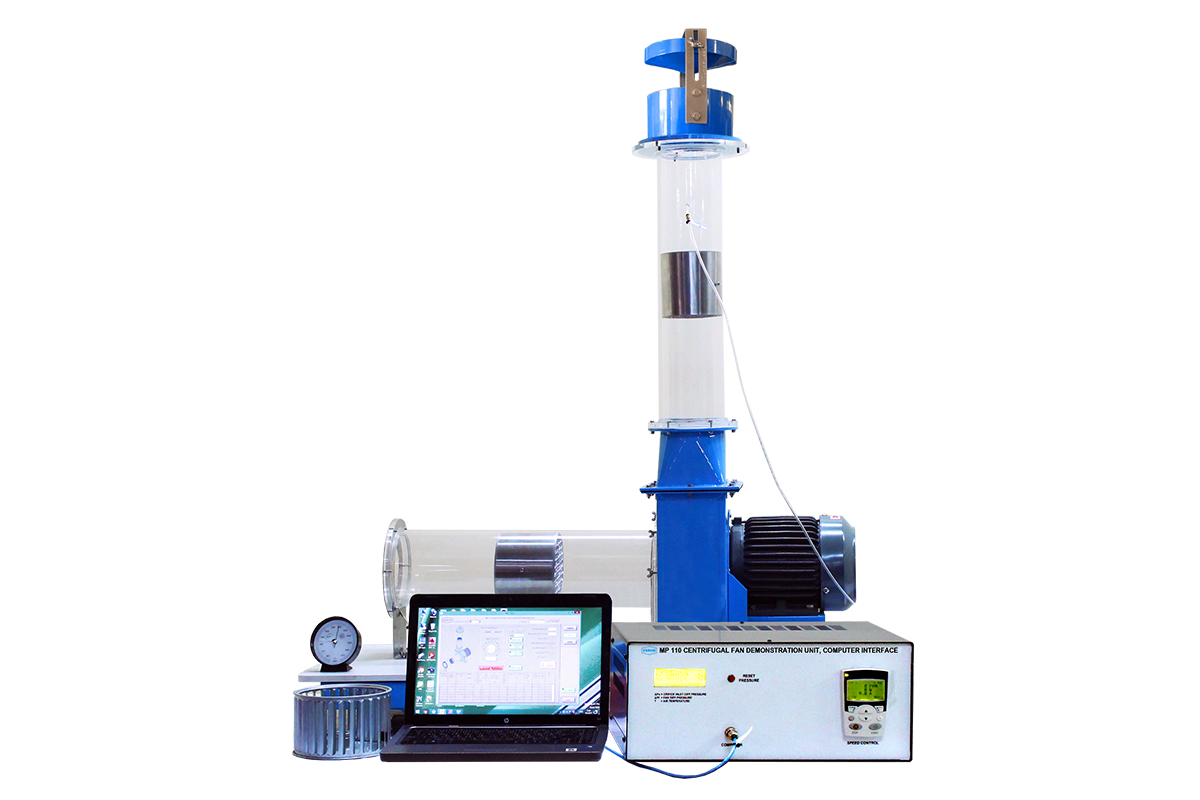

The unit consists of a small industrial centrifugal fan with a backward blade impeller and a motor on a steel base, inlet and outlet ducts, instrument box, sensors, and software. An interchangeable forward blade impeller is provided for comparison of operating characteristics.
Instruction manual is also included.

  • Flow rate vs pressure
  • Fan input, output and overall efficiency
  • Effect of speed on fan performance
  • Comparison of backward and forward blade impellers
  • Fan ratings :

- Maximum flow rate: 10 m3/min
- Maximum pressure: 0.5 kPa
  • Inlet duct
: Transparent with flow straightener and inlet orifice
  • Outlet duct
: Transparent with flow straightener and damper
  • Sensors with digital display
: Differential pressure across the fan
 : Differential pressure at the orifice
 : Temperature of inlet air
 : Motor input power
 : Fan speed
  • Accessories
: Forward blade impeller and barometer
  • Computer interface unit

  • Power supply
: 230V 1Ph 50Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
:  64 x 101 x 55 cm
  • Net weight
:  Approx. 40 kg f

  • MP110-060
MP110-060
This includes the additional accessories and additional software function for equipment controls by computer
