MP 121 AXIAL FLOW FAN DEMONSTRATION UNIT, Computer Interface

Enquiry

Video

Download

This is a bench top unit for a study of axial flow fan characteristics with data analysis by computer (separately supplied).
The unit consists of a small axial flow fan with DC motor on a steel base, a speed control switch, inlet and outlet ducts, an interface box, sensors, and software. The box includes power supply for the fan, display and computer interface unit. It also provides interface ports to sensors and computer.
The unit is to be use with a computer (separately supplied).
Instruction manual is also included.

  • Flow rate VS pressure
  • Fan input, output and overall efficiency
  • Effect of speed on fan performance
  • Fan ratings

- Maximum flow rate: 2.5 m3/min
- Maximum pressure: 0.10 kPa
  • Inlet duct
: Transparent with flow straighteners and inlet orifice
  • Outlet duct
: Transparent with flow straighteners and damper
  • Sensors with digital display
: Differential pressure across the fan
 : Differential pressure at the orifice
 : Temperature of inlet air
 : Motor input power
 : Fan speed
 : Atmospheric pressure
  • Computer interface unit

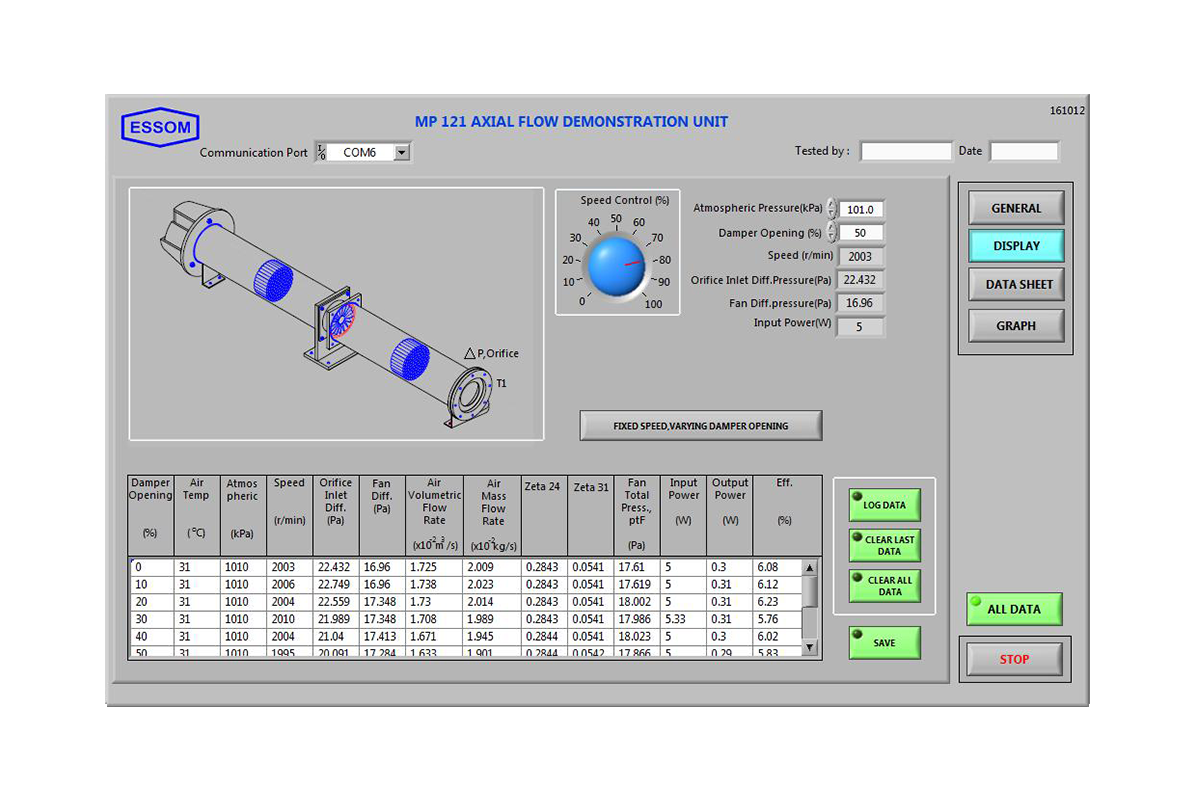

  • Software for data display and analysis by computer (separately supplied)
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Power supply : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
: 57 x 122 x 33 cm
  • Net weight
: Approx. 30 kg
  • MP121-060
Computer Control (computer not included)
 This includes the additional accessories for control function and additional software function for equipment
 controls by computer
