ST 312 SHEAR FORCE

Enquiry

Video

Download

This equipment is used for measurement of shear force on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

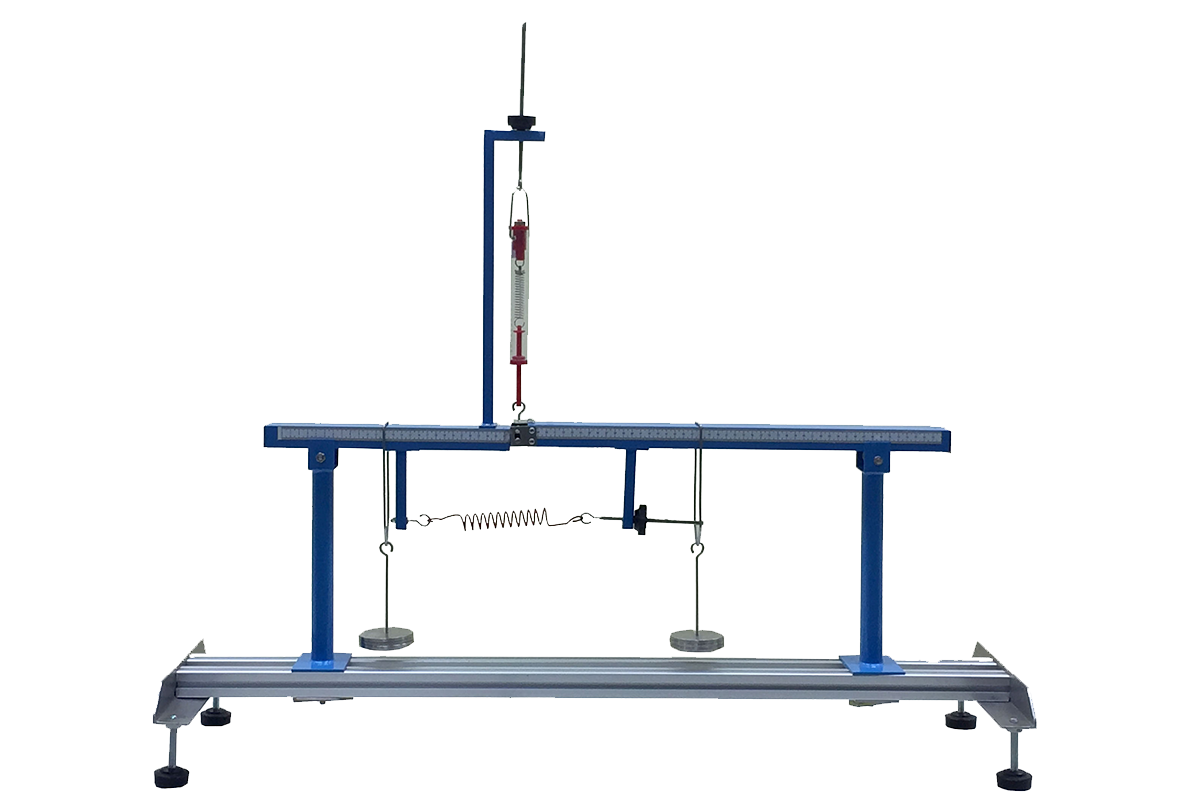

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance measures the shear force and an underhung spring is provided to resist bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the shear force at a cut section in a beam

  • Variation in shear force for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring
:  1
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot







  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST312S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST312-055
Computer Assist (computer not included)
                                  This includes ST312S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST312S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
