ST 331 TWO-HINGED PARABOLIC ARCH

Enquiry

Download

The equipment allows direct measurement of the horizontal component of the abutment thrust of a two hinged parabolic arch by using a simple model. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

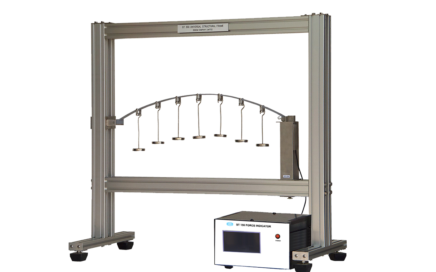

A parabolic arch of uniform cross-section has one end of the arch on a fixed hinged pin and the other is on bearings on a horizontal force support.  The horizontal movement of the roller end is monitored by a dial indicator. Measurement of horizontal thrust by the roller end is by using a pulley and a load hanger.

Instruction manual is also included.

  • Demonstration of the characteristics of a two-pinned arch

  • Examination of the relationship between applied loads and horizontal thrust

  • Comparison of behavior to simplified theory

  • Arch

- Mild steel :  19 x 4.5 (approx.) mm section
 :  600 mm span, 100 mm rise
  • Loading point
:  7 equally spaced
  • ST119 Horizontal Force Support
:  1
  • ST131 Dial Indicator
:  1
  • Loading hangers
:  7
  • Weights
:  1 lot





  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 75 x 20 cm
  • Net Weight:  Approx. 15 kg
  • ST331S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST331-055
Computer Assist (computer not included)
                                    This includes ST331S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST331S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
