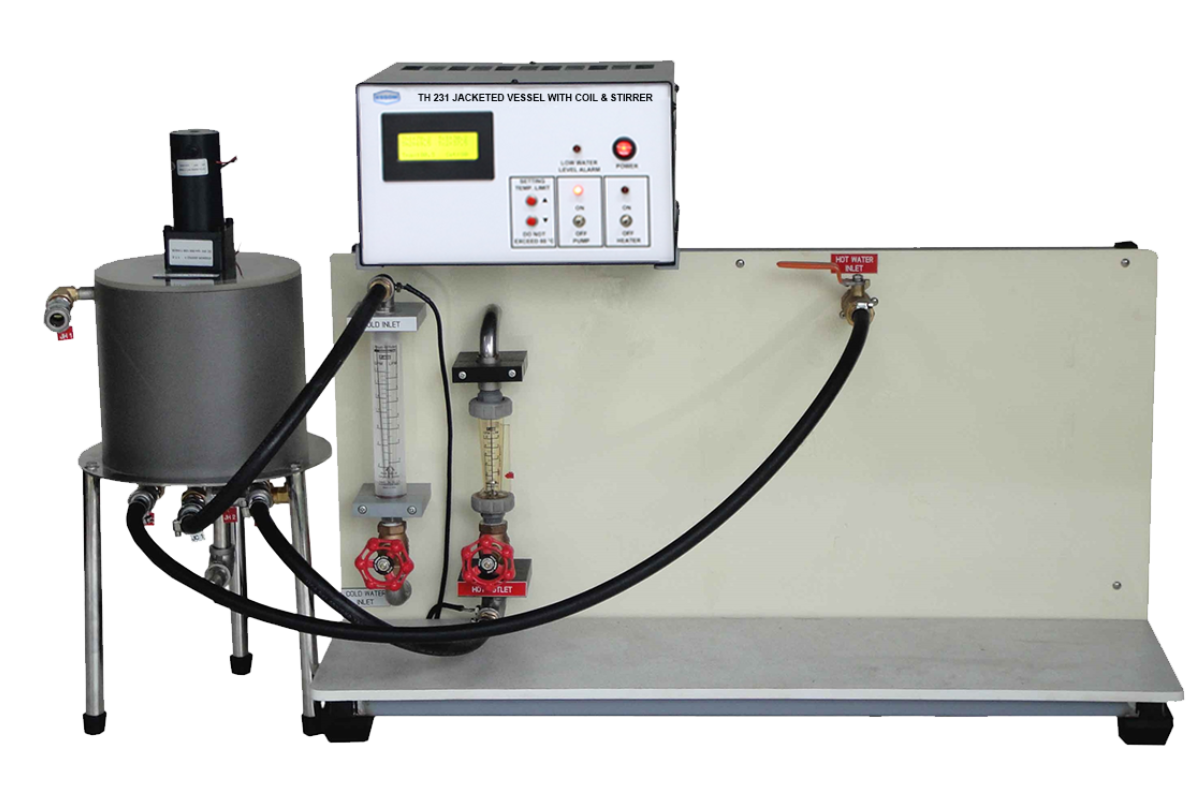

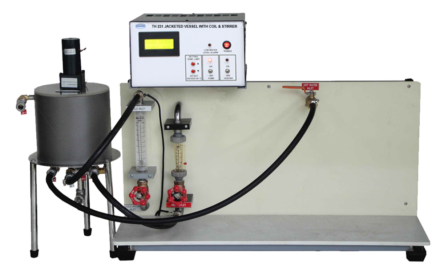

TH 231 JACKETED VESSEL WITH COIL & STIRRER

Enquiry

Video

Download

The apparatus is used for studying heat transfer with either an external jacket or an internal coil under batch wise or continuous feed conditions.

The unit consists of a jacketed vessel with a coil and stirrer and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow or changing from jacked vessel to coil and stirrer may be done by rearranging flexible hoses.

A cold fluid in a vessel is heated by a hot fluid in the jacket or in the coil. An adjustable speed a stirrer and baffles are provided to allow thorough mixing of the vessel contents. The content volume in the vessel can be varied by an adjustable height overflow pipe. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer for jacketed vessel with or without stirrer both continuous and batch types.



  • Demonstration of heat transfer for heating coil with or without stirrer.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.



  • Effect of vessel content.

  • Heat exchanger:

- Type: Jacketed vessel
- Stainless steel vessel: Maximum content 2.5 L
- Stainless steel jacket: Heat transfer area approximately 600 cm2
- Stainless steel coil.: Heat transfer area approximately 350 cm2
- Stirrer: 0- 500 rpm
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low.
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets, water outlets and vessel content.
  • Temperature control unit to limit temperature of hot water
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 115 x 65 cm

Net weight  : Approx. 50 kg

  • TH231S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH231-050
Computer Interface (computer not included)
 This includes TH231S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH231-060
Computer Control (computer not included)
 This includes TH 231-050 with the additional
 accessories for control function and additional
                             software function for equipment controls by computer
  • TH231S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
