Strength and properties of materials > Creep testing machine

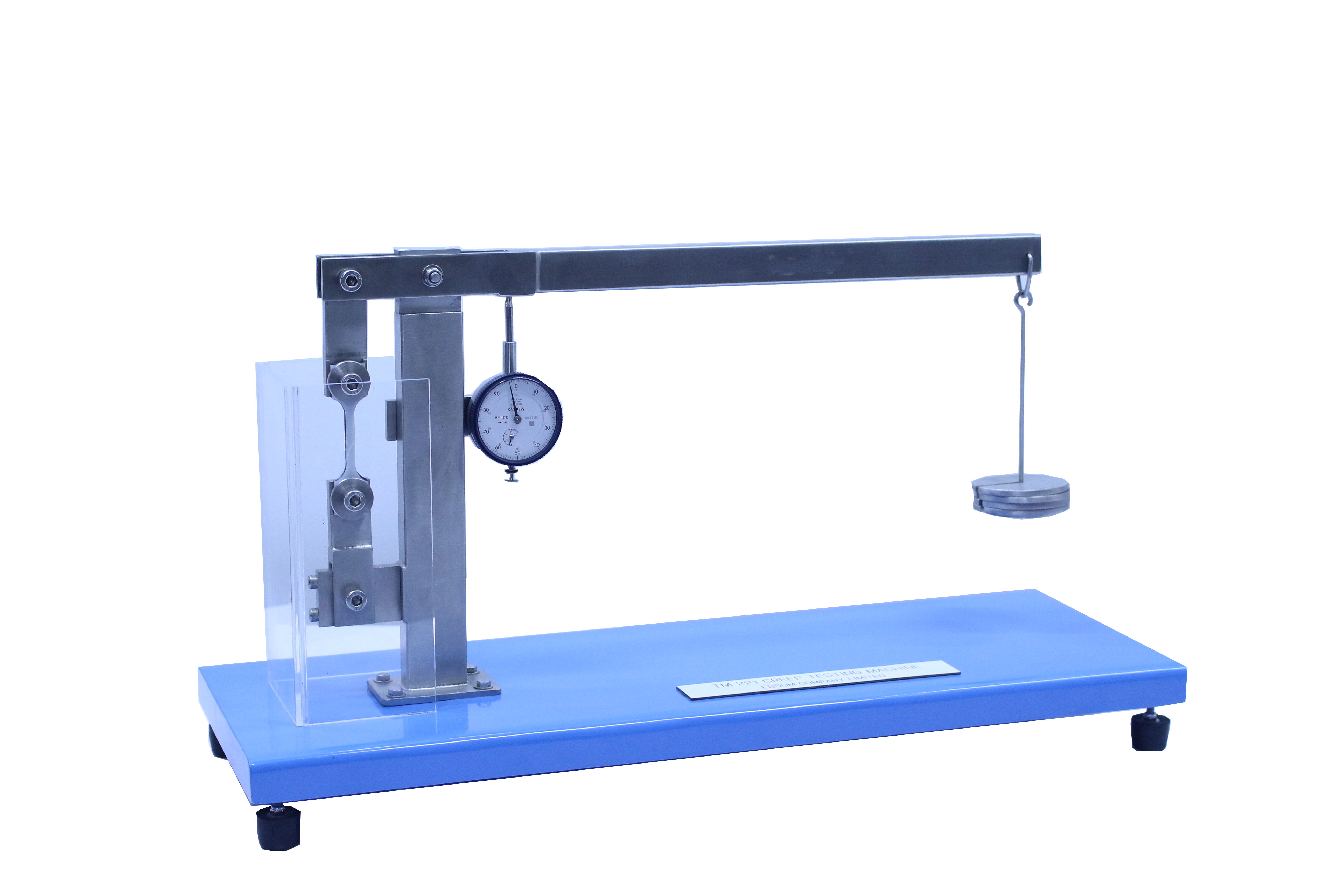

TM 221 CREEP TESTING MACHINE

Enquiry

Download

This equipment is used for testing materials with high creep such as lead and plastics.

A lever is pivoted to a column via ball bearing. Specimen is attached to one end of the lever while load is applied on the other end. Specimen extension is measured by a dial indicator. A glycol pack is provided to wrap the specimen and maintain the required test temperature.

Instruction manual is also included.

  • Creep phenomena of materials under different stresses and temperatures.

  • Lever ratio
:               8:1
  • Specimen enclosure
:               Clear acrylic
  • Weights
:               1 lot.
  • Dial indicator
:               10 mm x 0.01 mm graduation.
  • Thermometer
:               -10 to 50°C
  • Glycol pack







  • Net (unpacked) Shipping Dimensions WxLxH: 25 x 65 x 40 cm
  • Net Weight:  Approx. 15 kg
  • TM221-005Pb
Lead (Pack of 10).
  • TM221-005PE
Poly Ethylene (Pack of 10).
  • TM221-005PVC
Poly Vinyl Chloride (Pack of 10).
  • TM221-050
Computer Interface (computer not included)
                                                             This includes TM221S and significant sensor(s) instead of analog measuring instrument(s), data acquisition   (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TM221S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
