HB 020 IMPACT OF A JET

Enquiry

Download

This equipment provides measurement of force developed by a water jet on different stationary targets. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The equipment consists of a removable clear acrylic cylinder. Water is supplied through a tube at the bottom of the cylinder and discharged vertically through a nozzle onto a target plate. Each plate maintains the same working distance from the nozzle. A clear acrylic guard is provided to prevent water jet from splashing on the target. Force on the plate pushes its stem upward. Dead weight is then applied on the stem to counter balance the force exerted by the water jet. This balance is indicated by a pointer on a steel rod next to the weight. The apparatus rests on adjustable footings and a bull’s eye level is provided.

Instruction manual is also included.

  • Determination of the reaction of a jet striking different targets mounted normal to the jet direction, at different flow rates

  • Target plates

:  Flat

:  Inward cone

:  Outward cone

:  Hemisphere


  • Nozzle
:  1
  • Target plate material
:  1
  • Weights
:  1 LOT

  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 35 x 76 cm
  • Net Weight:  Approx. 8 kg
  • HB020S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

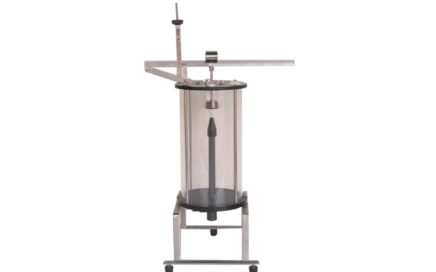

  • HB020-001A
Impact force is balanced by jockey weight on 240 mm lever which is hinged on one end instead of weights on the stem.
  • HB020-002
Additional target plate i.e. 45°,120° inward curve or 120° outward curve.
HB020S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
