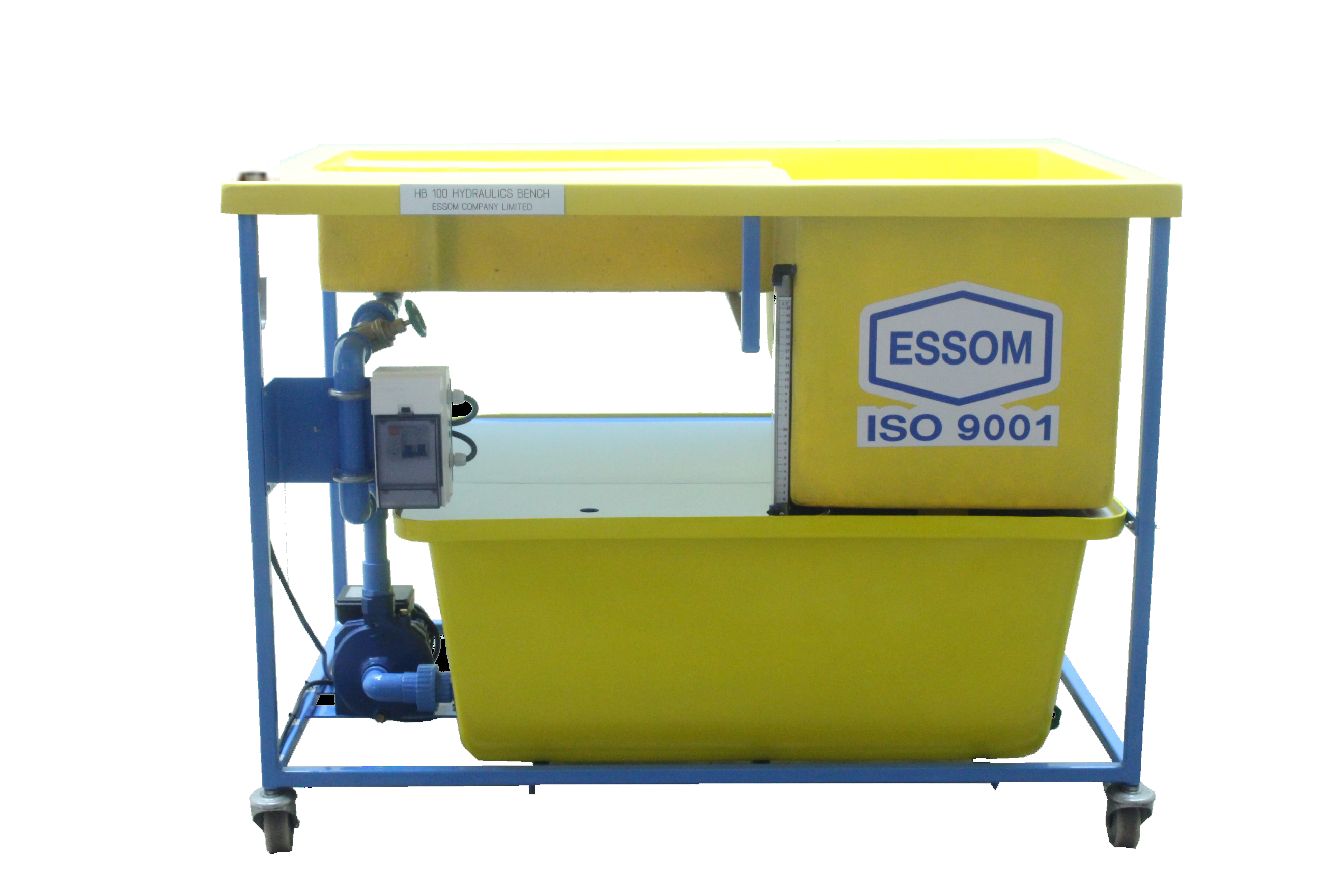

HB 100 HYDRAULICS BENCH

Enquiry

Download

This is a service unit which provides water supply and volumetric measurement for use in conjunction with accessories for specific experiments (separately supplied).

The bench top is molded into a measuring tank and a channel and is made of fiber glass. Water is admitted at one end of the channel via a quick coupling for connection to the experiment accessory which is mounted across the channel. The accessory discharges water into the open channel which in turn discharges water into the measuring tank. The tank discharges water to a main storage tank which is drained at the bottom. A pump draws water from the storage tank and supplies to the outlet at the top. The measuring tank is stepped to enable accurate measurement of both high and low flow rates. A level gauge at the side of the bench measures volume in the measuring tank. A bull’s eye level is provided to indicate the bench is level. The unit is on a steel frame on wheels.

Instruction manual is also included.

  • Pump
:  Centrifugal pump
  • Bench top dimensions
:  Approx. 126 cm long x 77 cm wide
  • Open channel
:  Approx.  25 cm wide x 17 cm deep
  • Measuring tank
:  Low flow 10 L, high flow 45 L
  • Water storage tank
:  Approx. 180 L
  • Accessories
:  Stop watch and outlet hose with fittings for connection to accessory
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request
  • Measuring cup
:  1 L
  • Net (unassembled) Shipping Dimensions WxLxH: 78 x 126 x 95 cm
  • Net Weight:  Approx.70 kg
  • HB001
Bench leveling screws
  • HB002A

The second level gauge to measures level in the channel

Thus, flow over a notch experiment can be run without using hook and point gauge.

  • HB003A
Variable speed pump with a control panel instead of fixed speed pump
  • HB005
Measuring tank stilling baffle
  • HB006A
Full length storage tank instead of standard storage tank
  • HB007A
Submersible pump instead of centrifugal pump
  • HF011-070

Variable area flow meter for flow rate indication

  • HP002
Pressure gauge at pump discharge for a study of pump or turbine performance
  • HP010
Flow digital display
  • HP011

Pressure digital display at bench pump discharge for pressure indication
