HF 502 SEDIMENT FLOW CHANNEL, 75 mm. wide

Enquiry

Video

Download

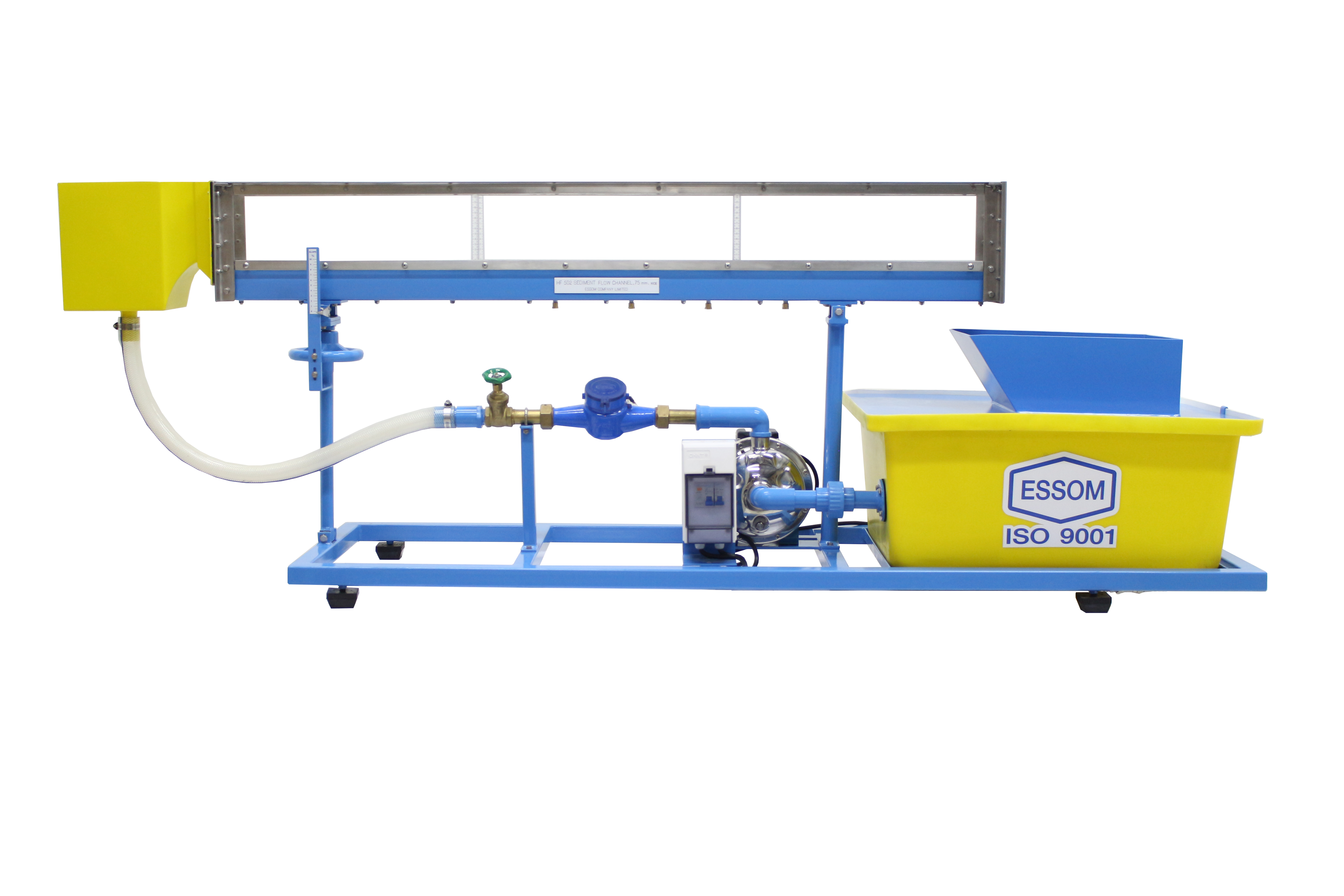

This is a self-contained bench top open channel for studying bed forms with change in flow and slope as well as flow phenomena without sediment.

The channel is of a rectangular cross-section supported by steel frame. The channel sides are made of clear acrylic with tilting controlled by a manual screw jack. A stainless-steel head tank with a stilling baffle provides a smooth flow.

The water is discharged from the channel via a built-in rectangular weir to the storage tank. A fine strainer is provided in the storage tank to trap the sand sediment.

Instruction manual is also included.

  • Fixed smooth bed flow

  • Flow over mobile sand bed

  • Flow structures

  • Local scour

  • Mechanics of sediment transport

  • Bed form hysteresis

  • Depositionary features and fancies

  • Computational work

  • Flow over fixed gravel bed

  • Channel size
:  75 mm wide, 150 mm high
  • Channel length

:  1.5 m (Extended length can be supplied on request.)


  • Tilting adjustment
:  0 to +10 %
  • Channel bed
:  Stainless steel
  • Side walls
:  Clear acrylic with clear vertical scale
  • Pump
:  1
  • Water storage tank
:  1
  • Sediment
:  Fine grade sand
  • Standard accessories
:  Sharp crested weir
 :  Adjustable undershot weir
 :  Bridge pier
  • Hook and point gauge
:  1
  • Flow measurement
:  Water meter and stop watch
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 275 x 80 cm
  • Net Weight:  Approx. 92 kg
  • HF502S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • HP010
Flow digital display
  • Washed sand 10 kg (Due to export laws and regulations, washed sand cannot be exported. Buyer should source it locally.)

  • Other optional equipment, please contact manufacturer ([email protected])

  • HF502S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
