ST 322 AREA MOMENT METHOD

Enquiry

Video

Download

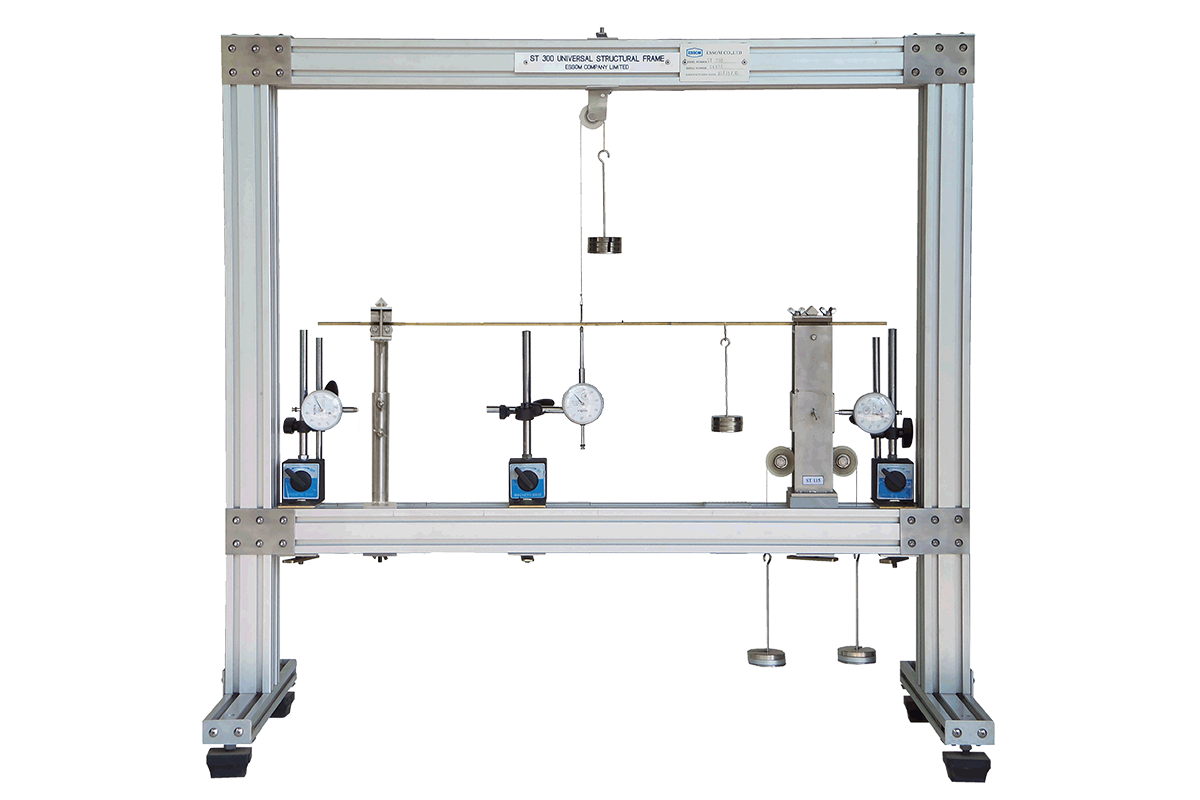

The equipment is used for verification of the deflections and slopes of a beam by area-moment method. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.



The beam has a moment support and one built-in / knife edge support. The supports allow longitudinal travel of the beam. The moment support has a rotating arm which is monitored by a dial indicator. The moment is applied and measured by load on the rotating arm. The beam deflection is measured by a dial indicator.

Instruction manual is also included.

  • Deflections and slopes of a beam by area-moment method

  • Shape of a deflected beam.

  • Test beam

- Steel:  2
- Aluminum:  1
- Brass:  1
  • ST 115 Moment Support
:  1
  • ST 112 Built-in/Knife edge Support
:  1
  • Pulley set
:  1
  • Hanger slider
:  1
  • Cord
:  1
  • Load hangers
:  2
  • Weights
:  1 lot
  • ST131 Dial Indicator
:  3

  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 75 x 15 cm
  • Net Weight:  Approx. 10 kg
  • ST322S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
ST322-055  Computer Assist (computer not included)
                                    This includes ST322S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST322S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
