Renewable Energy
Currently, the company offers a range of renewable energy products, including hydropower, wind power, and solar power. Further details are available on our website at www.essom.com, or you may contact us via email at [email protected] or [email protected].
On this occasion, we would like to introduce our wind energy testing equipment.

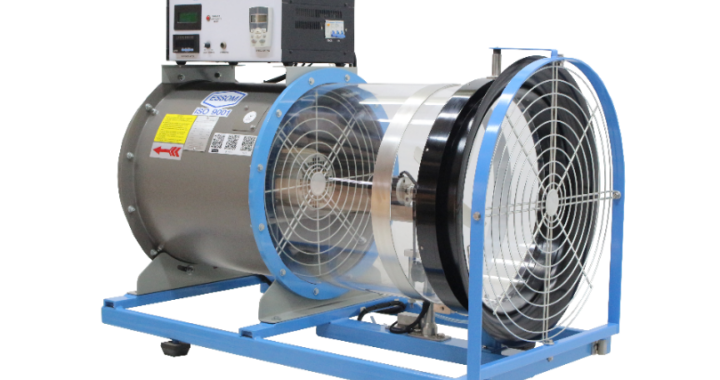

RE310 EDUCATIONAL WIND TURBINE, Computer Interface
The turbine consists of axial flow fan with speed control and flare entrance, a wind turbine, DC generator with resistance load, dynamometer, and measuring instruments. The turbine and blade angle can be adjusted using a special device. The unit can also be used for testing different blade design by students
EXPERIMENT CAPABILITIES
- Calculation of wind power.
- Turbine output VS wind speed.
- Turbine efficiency.
- Effect of blade angle.
- Effect of number of blades.
- Effect of yaw angle adjustment
TECHNICAL DATA
- Fan
– Maximum wind speed : 20 m/s - Wind speed control : Inverter
- Turbine blade angle setting device
- Generator dynamometer and resistance load
- Turbine output
– Maximum wind speed : 15 m/s
– Maximum turbine speed : 4400 rpm
– Maximum mechanical power : 130 W - Measuring instruments
– Pitot tube for wind speed
– Speed for turbine
-Torque
– Voltage and current for electrical output power - Computer interface with software for data display
