ST 352 SUSPENSION BRIDGE

Structure and accessories > Bridge and arch

ST 352 SUSPENSION BRIDGE

Enquiry

Video

Download

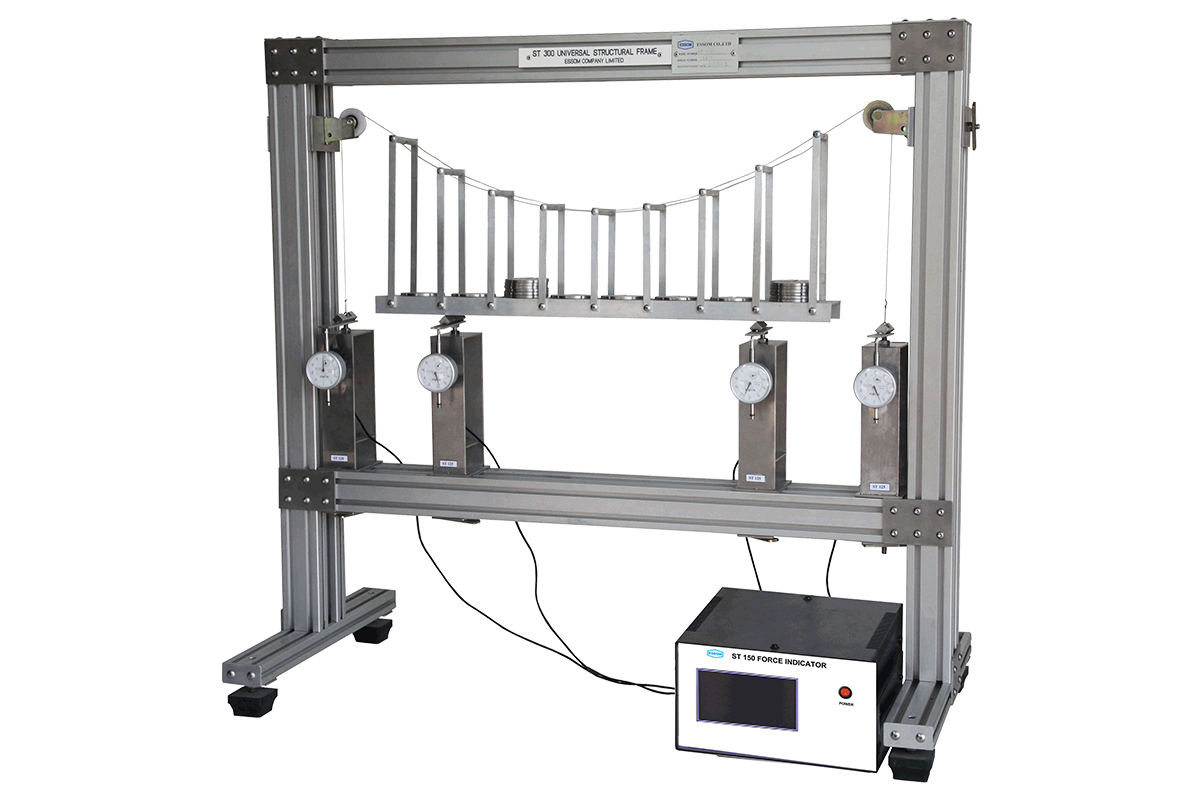

This equipment is used for studying the inter-action between suspension cables and load measuring supports with uniform and non-uniform distributed and point load on the rigid deck. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

A light metal alloy with stiffening ribs is carried by two rows of nine equally spaced hangers, one on each side. Each row of hangers has a flexible steel cable support whose length simulates a parabolic curve. Each cable end passes over a pulley to a load hanger. Special loads are provided to simulate uniform distribution load and movable point load. The bridge deck rests on two vertical force supports with height compensation mechanism. Support settlements are measured by dial gauges.

Instruction manual is also included.

  • Demonstration of the characteristics of a suspension bridge

  • Examination of the relationship between applied loads and the suspension cable tension

  • Observation of the stability of the structure

  • Comparison of behavior to simplified cable theory

  • Bridge
:  Aluminum 660 long x 75 mm wide
  • Arch
:  600 mm span, 150 mm and 100 mm dip
  • ST 124 Vertical Force Supports
:  2
  • Load hangers
:  2
  • Point load and weights
:  1 lot
  • Weights
:  1 lot
  • Pulley sets
:  2



  • Net (unassembled) Shipping Dimensions WxLxH: 65 x 75 x 30 cm
  • Net Weight:  Approx. 11 kg
  • ST352S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST352-055
Computer Assist (computer not included)
                                    This includes ST352S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST352S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 351 SIMPLE SUSPENSION BRIDGE

ST 351 SIMPLE SUSPENSION BRIDGE

Enquiry

Video

Download

This equipment allows measurement of cable tension resulting from uniform and non-uniform distributed and point loads on the rigid deck. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

A light metal alloy with stiffening ribs is carried by two rows of nine equally spaced hangers, one on each side. Each row of hangers has a flexible steel cable support whose length simulates a parabolic curve. Each end of the cable passes over a pulley to a load hanger. Special loads are provided to simulate uniform distribution load and movable point load.

Instruction manual is also included.

  • Demonstration of the characteristics of a simple suspension bridge

  • Examination of the relationship between applied loads and the suspension cable tension

  • Observation of the stability of the structure

  • Comparison of behavior to simplified cable theory

  • Bridge
:  Aluminum 660 long x 75 mm wide
  • Arch
:  600 mm span, 150 mm and 100 mm dip
  • Pulley sets
:  2
  • Load hangers
:  2
  • Point load and weights
:  1 lot.








  • Net (unassembled) Shipping Dimensions WxLxH: 35 x 75 x 30 cm
  • Net Weight:  Approx. 7 kg
  • ST351S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST351-055
Computer Assist (computer not included)
                                    This includes ST351S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST351S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 333 THREE HINGED ARCH

ST 333 THREE HINGED ARCH

Enquiry

Video

Download

This equipment is used for measurement of horizontal abutment thrust for symmetrical and unsymmetrical three hinged arch using a combination of concentrated and distributed loading. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The metal alloy arch is hinged at the middle with symmetrical and unsymmetrical spans. One end is hinged while the other has bearings on a horizontal force support with means of applying horizontal abutment thrust using a pulley and a load hanger. The center hinge has a needle roller bearing. A two-roller load and weights for uniform load distribution are provided.

Instruction manual is also included.

  • Demonstration of the characteristics of a three-pinned arch

  • Examination of the relationship between applied loads and horizontal thrust

  • Comparison of behavior to simplified theory

  • Arch
:  Aluminum, 75 mm wide
  • Span
:  600 mm and 450 mm
  • ST119 Horizontal Force Support
:  1
  • ST131 Dial Indicator
:  1
  • Rolling Loads
:  2
  • Weight for load distribution
:  1 lot.







  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 65 x 20 cm
  • Net Weight:  Approx. 15 kg
  • ST333S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST333-055
Computer Assist (computer not included)
                                    This includes ST333S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST333S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 332 TWO HINGED PARABOLIC ARCH, Fixed End

ST 332 TWO HINGED PARABOLIC ARCH, Fixed End

Enquiry

Video

Download

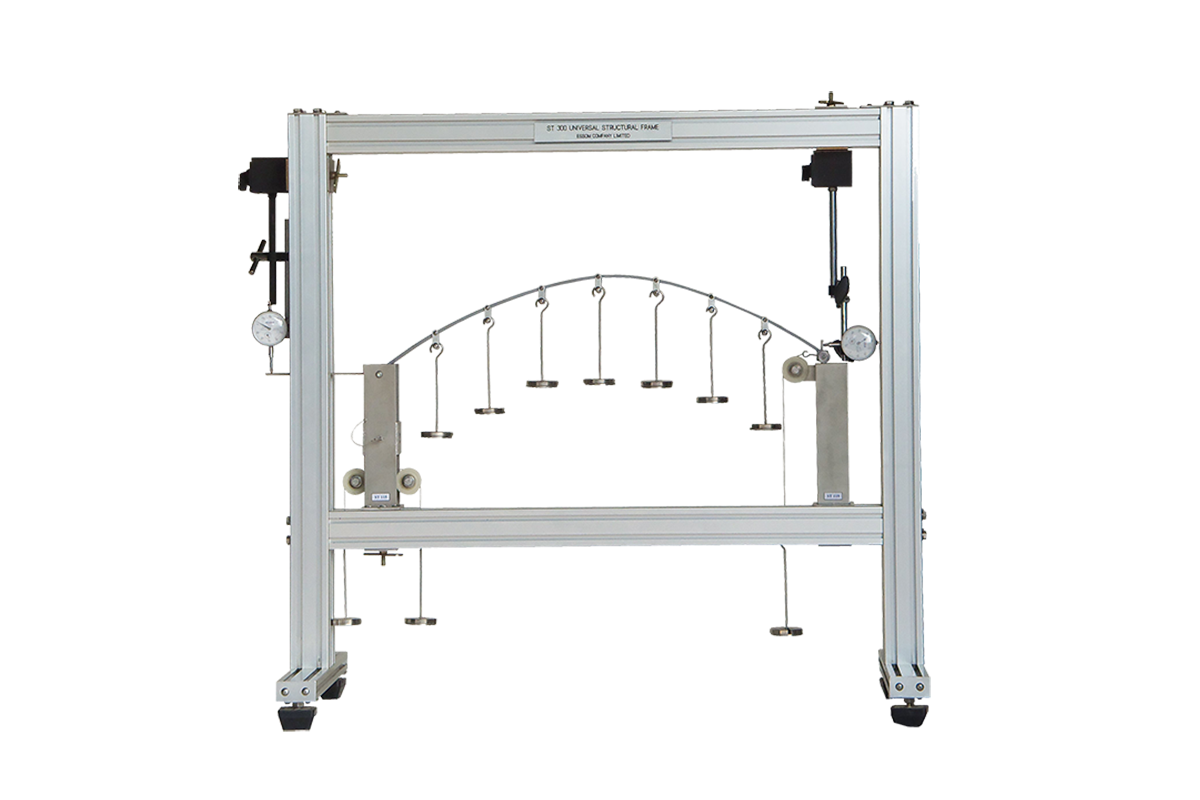

This equipment is used for measurement of horizontal thrust and end fixing moments of the abutment for comparison with model analysis and simplified theory. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

A parabolic arch has one end pivoted on a moment support and fitted with an arm for applying and measuring moments and rotations.  The other end is pivoted in ball bearings on a horizontal force support. Load hangers and weights are attached to the arch. Load hangers are used for measurement of horizontal thrust and fixing moment.

Instruction manual is also included.

  • Demonstration of the characteristics of a fixed arch

  • Examination of the relationship between applied loads, horizontal thrust and fixing moment

  • Comparison of behavior to simplified theory

  • Arch

- Mild steel :  19 x 4.5 (approx.) mm. section
 :  600 mm span, 100 mm rise
  • Loading points
:  7 equally spaced
  • ST115 Moment Support
:  1
  • ST119 Horizontal Force Support
:  1
  • ST131 Dial Indicators
:  2
  • Load hangers
:  7
  • Weights
:  1 lot




  • Net (unassembled) Shipping Dimensions WxLxH: 25 x 90 x 20 cm
  • Net Weight:  Approx. 21 kg
  • ST332S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

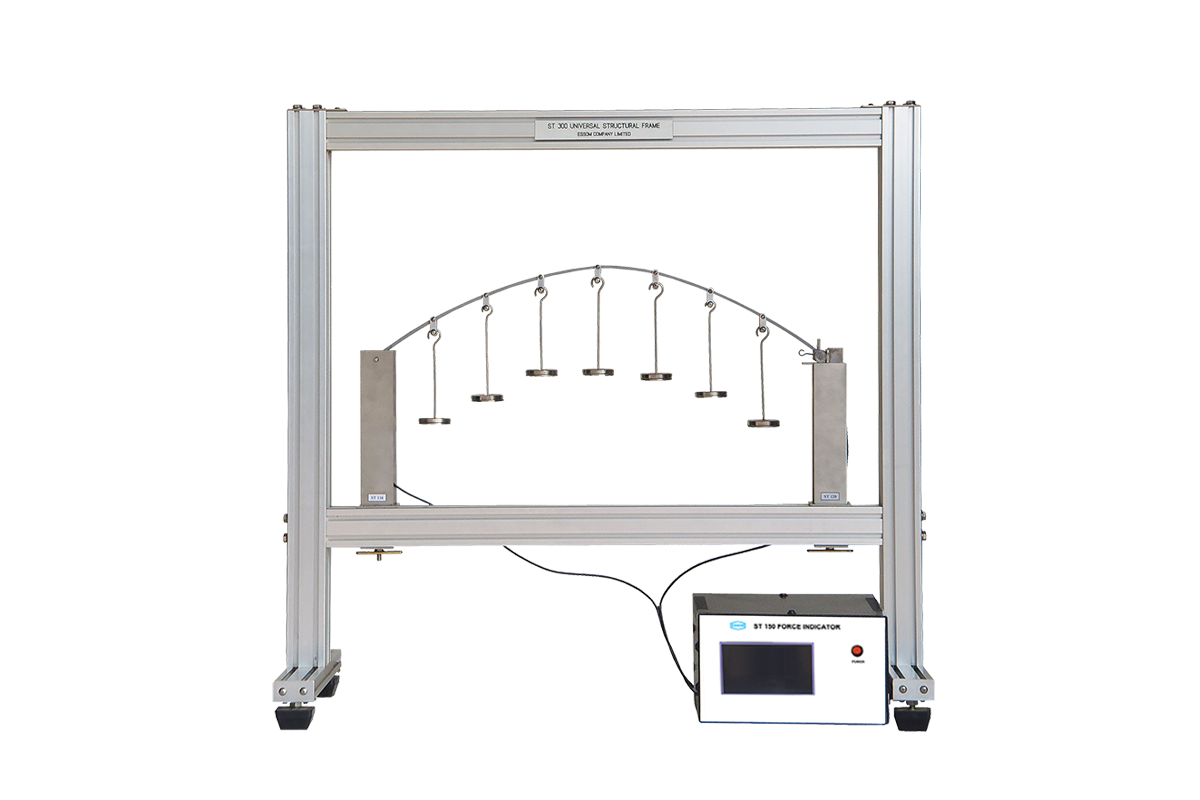

ST332-055Computer Assist (computer not included)
                                    This includes ST332S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST332S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 331 TWO-HINGED PARABOLIC ARCH

ST 331 TWO-HINGED PARABOLIC ARCH

Enquiry

Download

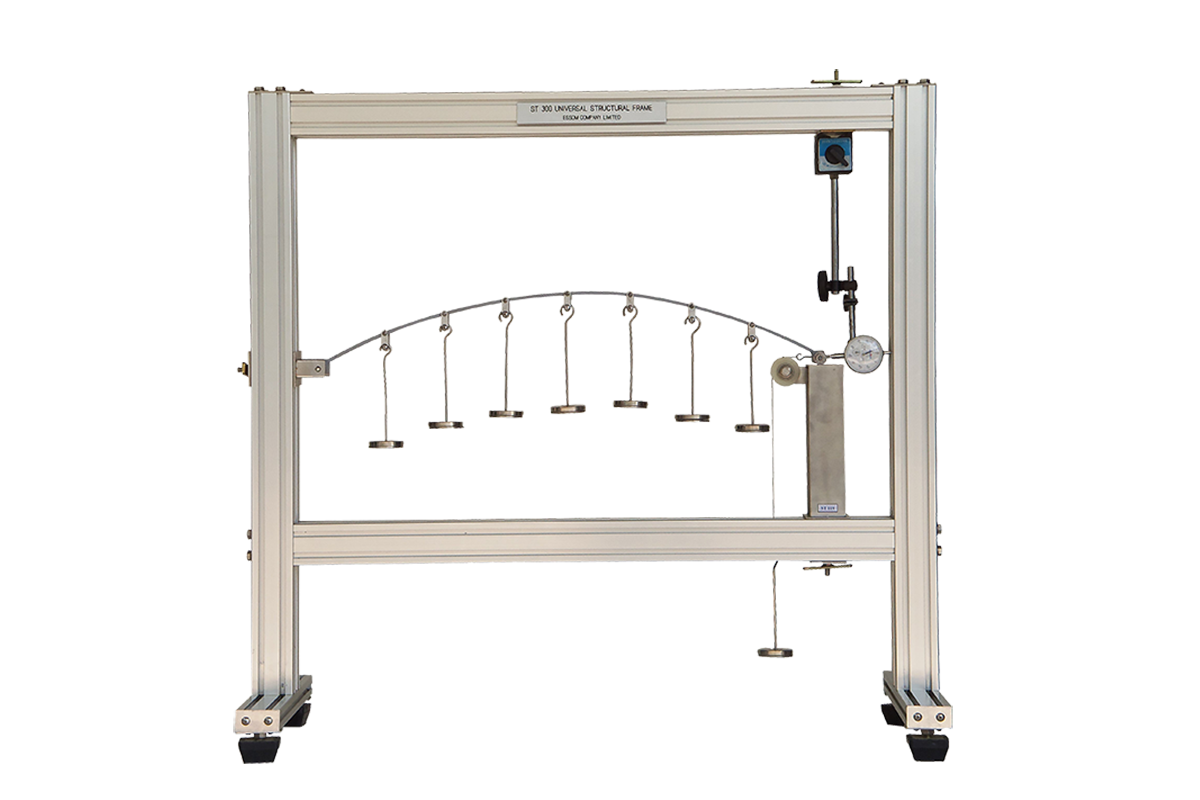

The equipment allows direct measurement of the horizontal component of the abutment thrust of a two hinged parabolic arch by using a simple model. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

A parabolic arch of uniform cross-section has one end of the arch on a fixed hinged pin and the other is on bearings on a horizontal force support.  The horizontal movement of the roller end is monitored by a dial indicator. Measurement of horizontal thrust by the roller end is by using a pulley and a load hanger.

Instruction manual is also included.

  • Demonstration of the characteristics of a two-pinned arch

  • Examination of the relationship between applied loads and horizontal thrust

  • Comparison of behavior to simplified theory

  • Arch

- Mild steel :  19 x 4.5 (approx.) mm section
 :  600 mm span, 100 mm rise
  • Loading point
:  7 equally spaced
  • ST119 Horizontal Force Support
:  1
  • ST131 Dial Indicator
:  1
  • Loading hangers
:  7
  • Weights
:  1 lot





  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 75 x 20 cm
  • Net Weight:  Approx. 15 kg
  • ST331S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

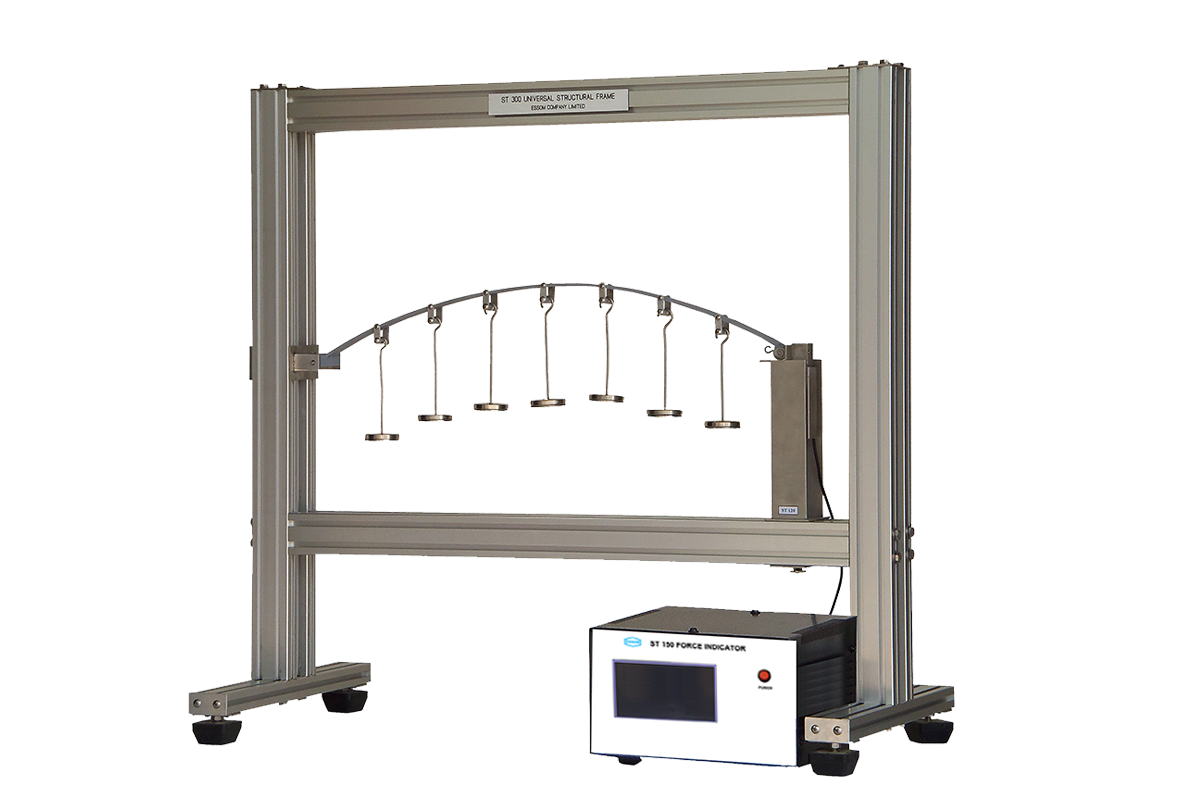

  • ST331-055
Computer Assist (computer not included)
                                    This includes ST331S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST331S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 313 INFLUENCE LINE APPARATUS

ST 313 INFLUENCE LINE APPARATUS

Enquiry

Video

Download

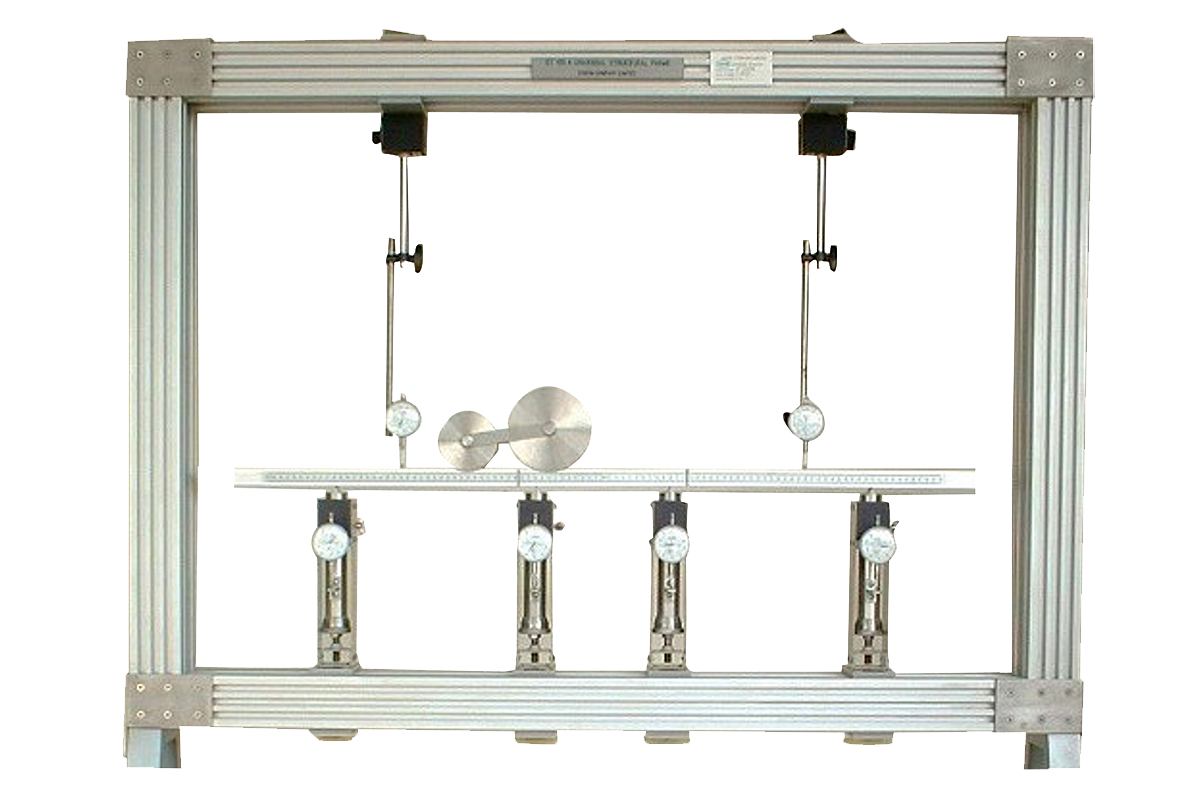

The equipment is used for studying the reactions under various conditions of load at all supports along a three-span bridge. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The bridge has a cantilever end sections and a suspended center section.  The location of the supports is adjustable. The supports are vertical force supports for measurement of loads. The deflection of the bridge can be measured by dial indicators.

Instruction manual is also included.

  • Influence lines for supports and internal reactions due to a load moving across the beam structure.

  • The effect of loads to bridge support reactions and internal reactions between the cantilever and suspended sections.

  • Bridge:   End span length
:  2 ea. 250 mm
         Center span length:  150 mm
  • ST 124 Vertical Force Supports
:  4
  • Rolling loads
:  2
  • ST131 Dial Indicators
:  2








  • Net (unassembled) Shipping Dimensions WxLxH: 35 x 80 x 15 cm
  • Net Weight:  Approx. 15 kg
  • ST313S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
ST313-055  Computer Assist (computer not included)
                                    This includes ST313S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST313S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
