CF 210 TRAY DRYER

Chemical engineering and food technology > Food technology

CF 210 TRAY DRYER

Enquiry

Video

Download

This is a basic unit for studying of tray drying by hot air.

The unit consists of a rectangular duct.  Air is drawn into the duct by an axial flow fan with guide vane, wire mesh screen and flow strengthener at the front end of the duct.  Fan speed is adjustable.  A bank of electric heaters behind the fan raises air temperature. Behind the heater is a drying compartment with transparent access door. A rack of trays is suspended from a balance above the duct.  Temperatures and humidity before and after the drying trays are measured.

Instruction manual is also included.

  • Tray drier drying curves.

  • Effect of particle size.

  • Effect of air velocity.

  • Effect of air temperature.

  • Drying section
:  350 x 350 mm
  • Fan

- Capacity:  ……..kW
  • Heater capacity
:  3 kw, variable
  • Trays
:  4
  • Tray capacity
:  3 kg of solids (approx.)
  • Measuring instruments

- Sampling weigh:  Digital balance
- Air velocity:  Anemometer
- Temperature-Humidity measurement:  Portable thermo-hygrometer
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 250 x 120 cm
  • Net Weight:  Approx. 240 kg
  • CF210-001
Heater power          : Watt or voltage and current digital display for heater power measurement.
  • CF210-050
Computer Interface (computer not included)
                                      This includes CF210S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • CF210S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 200 CYCLONE SEPARATOR

Enquiry

Video

Download

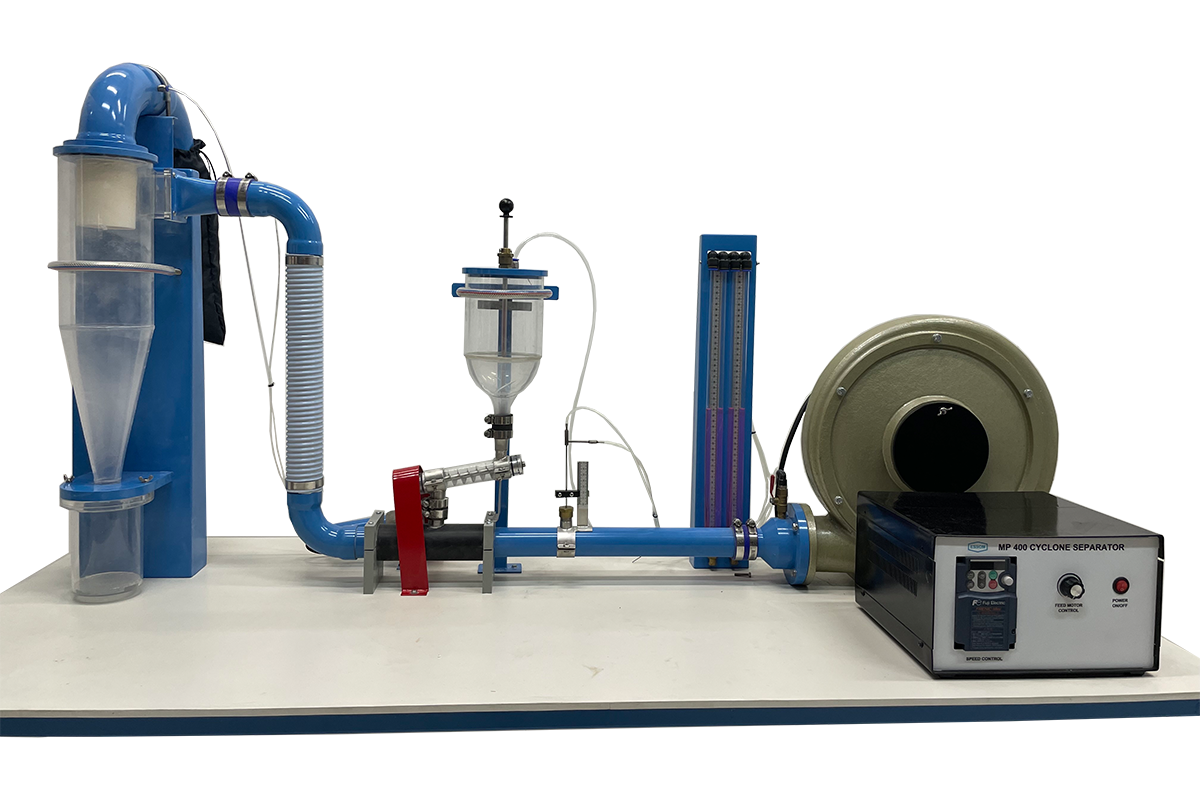

The equipment is for studying the principle of two phase flow using a centrifugal blower.

Powder material is fed by an agitator and a variable speed screw feeder to a Venturi tube. The material is carried by air in the tube to a cyclone where the velocity is reduced and the material is separated and dropped to the bottom.

Instruction manual is also included.

  • Velocity profile of air in the transfer tube using a travelling Pitot.

  • Observation of material separation in the cyclone.

  • Comparison of theoretical expression with test results for pressure loss and material collection efficiency at each air velocity.

  • Blower :

- Type:  Centrifugal blower
- Maximum air flow rate:  Over 6 m3/min
  • Speed control
:  Inverters
  • Cyclone
:  Clear acrylic and discharge tube
  • Accessories
:  Cyclone dust box
 :  Filter bag
 :  Stop watch
 :  Platform balance
 :  Beaker
  • Measuring instruments

- Air flow:  Travelling Pitot with water manometer
- Pressure:  Water manometer for measurement of pressure difference in the transfer tube and the cyclone
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: Approx, 75 x 180 x 100 cm
  • Net Weight:  Approx. 180 kg








  • CF200S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 110 FILTER PRESS APPARATUS

Enquiry

Download

Filter press is used for clarifying intermediate products. Such as suspension water. A suspension water is prepared in a feed tank. A stirrer ensures that the solid remains suspended and does not settle. The pump delivers the suspension water into the individual separating chambers of the filter press. The filtrate passes through the filter cloth and flows into the filtrate tank.

The flow rate through the filter press is controlled by a pump. The pressure occurring during filtration is indicated on a pressure gauge.

The unit is painted steel frame with adjustable footings.

  • Learning the fundamental principle and method of operation of a plate and frame filter press

  • Production of a suspension

  • Fundamentals of cake filtration (Darcy’s equation)

  • Variation in time of filtrate quantity and solid concentration in filtrate

  • Feed tank
:  Clear acrylic tank with stirrer.
  • Filter press
:  1 set.
  • Feed pump
:  1 ea.
  • Filtrate tank
:  Clear acrylic tank with drain point.
  • Measuring instruments
- Pressure :  Pressure gauge at filter inlet.
  • Power supply
:  220V 1Ph 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 120 x 120 cm.
  • Net Weight:  Approx. 90 kg
  • CF110-001
Filter paper
  • CF110-002
Portable turbidity meter
  • CF110-003
Digital balance.
  • CF110-004
Watch glass
  • CF110-005
Lockable wheel instead of screw adjustable footing
  • Larger size is available on request.

  • Other optional equipment, please contact manufacturer ([email protected])

  • CF110S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
